Zebra

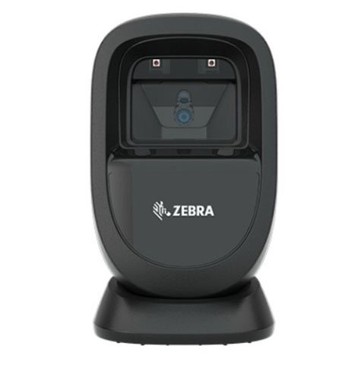

DS9308-sr black Serial Kit: DS9308-sr000

SKU:

DS9308-SR4R2800AZW

The Zebra DS9308-SR4R2800AZW is a desktop from the DS9300 series. Delivers high first-read rates on standard and degraded barcodes for retail, warehouse, and healthcare environments.
Description
ico-plus ico-minus

The Zebra DS9308 Barcode Scanner combines advanced technology with a compact design, making it ideal for space-constrained retail environments such as convenience stores and trendy boutiques. Engineered for all-day reliability, this scanner captures both 1D and 2D barcodes effortlessly, ensuring speedy checkout and enhanced customer satisfaction. Its rapid-fire scanning ability and intelligent adaptive illumination streamline operations, while built-in features like document capture and anti-theft tag deactivation eliminate extra steps at the point of sale. This little scanner delivers big functionality, making it a must-have for businesses aiming to optimize their service.


Key features:

  • Compact Design: At home in any retail environment with a near-zero footprint.
  • Advanced Scanning: Captures 1D and 2D barcodes, including damaged and low-contrast codes.
  • Rapid Scanning: Swipe speeds up to 50% faster than competitors.
  • Adaptive Illumination: Automatically adjusts LEDs for optimal visibility.
  • Durable Build: Survives drops, bumps, and spills with IP52 sealing.

Specifications:

  • Dimensions: 5.7 in. H x 3.4 in. W x 3.3 in. D (14.5 cm H x 8.6 cm W x 8.3 cm D)
  • Weight: 11.2 oz. / 318 g
  • Operating Voltage: 4.5 to 5.5 VDC
  • Scan Speed: Up to 120 in./305 cm per second
  • Image Sensor: 1280 x 800 pixels
  • Environmental Sealing: IP52
  • Drop Specification: Withstands drops from 5 ft./1.5 m
  • Supported Interfaces: USB, RS232, Keyboard Wedge
  • Warranty: 3 years against defects

Main Features

  • Connection: Serial, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D :
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 sur 5
  • Coréen 3 sur 5
  • GS1 DataBar
  • Base 32 (Pharmacie italienne)
2D :
  • PDF417
  • Micro PDF417
  • Codes composites
  • TLC-39
  • Aztèque
  • DataMatrix
  • MaxiCode
  • Code QR
  • Micro QR
  • Han Xin
  • Codes postaux
  • securPharm
  • DotCode
  • Doted DataMatrix
OCR :
  • OCR-A
  • OCR-B
  • MICR
  • US devise
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Area
Scanner Range Standard Range
Scanning Distance 10.98"
Features
  • Checkpoint EAS
  • Beep
  • Notification LED
Cable Type Included USB
Field of View (Horizontal) 52°
Field of View (Vertical) 33°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Image Formats
  • BMP
  • JPEG
  • TIFF
Maximum Ambient Light 107700 lux
Drop Specification
  • Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 6.7 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color Red
Air Electrostatic Discharge (+/-) 15kV
Interfaces/Ports
Host Interface
  • Serial
  • Keyboard Wedge
  • USB
  • Multi-interface
  • IBM 46XX
Power Description
Standby Current 135 mA
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Desktop
Color Family Black
Product Color Black
Durability
  • Dust Resistant
  • Spill Resistant
  • Water Resistant
  • Impact Resistant
Height 5.7"
Width 3.4"
Depth 3.3"
Weight (Approximate) 11.22 oz
Miscellaneous
Package Contents
  • 1 x DS9300 DS9308 Barcode Scanner
  • 1 x CBA-R28-C09ZAR VERIFONE Cable
Ingress Protection (IP) Rating IP52
Application/Usage
  • Retail
  • Commercial Service
  • Ticketing
  • Transportation
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document ds9300.pdf DS9308-SR4R2800AZW Product document ds9300.pdf MOD-DS9300
