Zebra

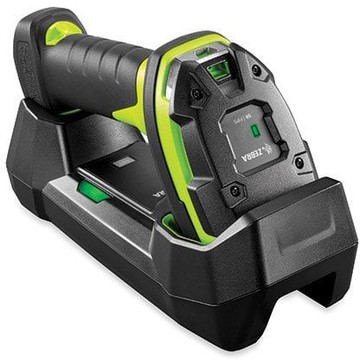

Zebra DS3678-HD Lector de códigos de barras Inalámbrico, 2D Alta densidad, Bluetooth, IP67, Kit USB, Negro/Verde

SKU:

DS3678-HD3U4210SFW

Ultra-Rugged Scanners, Zebra DS3600-HD, DS3678-HD Rugged Green Standard Cradle USB Kit: DS3678-HD2F003VZWW Scanner, CBA-U42-S07PAR Shielded USB Cable Supports 12V Power Supply, STB3678-C100F3WW Cradle, PWR-BGA12V50W0WW Power Supply, CBL-DC-451A1-01 and 23844-00-00R Line Cord
Description
ico-plus ico-minus
Zebra DS3678-DP Barcode Scanner combines cutting-edge technology with durability, making it an ideal solution for demanding manufacturing environments. Designed to excel in capturing direct part marks (DPM) and a variety of 1D/2D barcodes, this ultra-rugged scanner ensures maximum productivity and compliance with traceability regulations. Its lightweight design, advanced illumination system, and impressive battery life mean your team can work efficiently without downtime, even in challenging conditions.
Key Features
  • Superior Scanning Performance: Captures every type of DPM and 1D/2D barcode in any condition.
  • Ultra-Rugged Design: Survives drops from up to 8 feet, and is dustproof, spray-proof, and waterproof (IP67).
  • Advanced Illumination: Features multiple lighting modes for enhanced scanning on reflective and irregular surfaces.
  • Long Battery Life: Over 100,000 scans per charge with PowerPrecision+ technology.
  • Easy Management: Utilize 123Scan and Scanner Management Service for remote configuration and updates.

Specifications
  • Dimensions: Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D; Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D
  • Weight: Corded: 10.72 oz.; Cordless: 14.18 oz.
  • Battery: PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
  • Operating Temperature: Corded: -22° F to 122° F; Cordless: -4° F to 122° F
  • Drop Specification: Survives multiple 8.0 ft. drops to concrete
  • Connectivity: Bluetooth Class 1, Version 4.0 (LE)
  • Decode Capabilities: Supports 1D and 2D barcodes including QR and DataMatrix
  • Sealing: IP65 and IP67 rated for dust and water resistance

Main Features

  • Rugged: Industrial

  • Battery Capacity: High Capacity

  • Case color: Green

  • IP Rating: IP67

  • Range: Short Range

  • Connectivity: Cordless

  • Connection: Bluetooth

  • Scanner Capability: 2D, Imager

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
Image Sensor Type Imager
Network & Communication
Bluetooth Yes
Physical Characteristics
Form Factor Handheld
Product Color Industrial Green
Height 7.3"
Width 3"
Depth 5.6"
Weight (Approximate) 14.50 oz
Miscellaneous
Additional Information

USB Cable separate
Country of Origin China
Documents
ico-plus ico-minus
Product document ds36xx-hd.pdf DS3678-HD3U4210SFW Product document ds36x8-sr.pdf MOD-DS3678 Product document ds36x8-hp.pdf MOD-DS3678 Product document ds36x8-hd.pdf MOD-DS3678 Product document ds36x8-dp.pdf MOD-DS3678 Product document ds36x8-er.pdf MOD-DS3678 Product document ds36x8-dpa.pdf MOD-DS3678
