Wasp

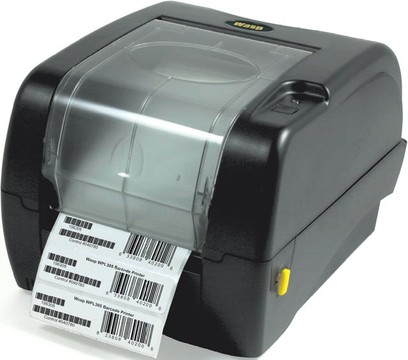

Wasp 633808402020 Label Printers

SKU:

633808402020

Barcode Label Printers, Wasp WPL305, Thermal Transfer, USB/RS-232 Serial/Centronics Parallel, 203 dpi, 7 ips, 4.25" Max Print Width, Desktop, Peeler, 8 MB SDRAM/4 MB Flash memory with SD expansion slot, Power Cable, Line Cord, USB Cable, Label Spindle Kit (Yellow Ribbon Rewind Spindle), WPL, ZPL, EPL emulation
Description
ico-plus ico-minus

The Wasp WPL305 Barcode Label Printer delivers exceptional performance for all your labeling needs. With print speeds of up to 5 inches per second at a resolution of 203 dpi, this compact thermal printer is designed for ease of use and swift media loading. Outfitted with two megabytes of DRAM and robust connectivity options including USB, Parallel, and RS232, you can quickly set it up and start printing in minutes. Its versatility extends with optional features like a peel and present function and label cutter, making the WPL305 a perfect choice for retail, medical, and shipping applications.


Key Features
  • Thermal Transfer or Direct Thermal Printing
  • Compact Design
  • Easy media supplies loading
  • 203 dpi print resolution
  • 5 inches per second print speed
  • 2 Megabyte DRAM standard, 1 Megabyte Flash
  • 4.25" print width
  • Optional Peel & Present and label cutter

Specifications
  • Printing Method: Direct Thermal and Thermal Transfer
  • Resolution: 203 dpi (8 dots/mm)
  • Print Speed: From 2" up to 5" per second
  • Maximum Print Width: 4.25" (108mm)
  • Memory: 2MB DRAM, 1 MB Flash
  • Communication Interfaces: RS232, Centronics Parallel, USB
  • Operating Temperature: 40°F-104°F (5°C to 40°C)
  • Media Width: 1" - 4.4" (19mm-118mm)
  • Bar Code Symbologies: Code 39, Code 128, UPC, EAN, and more
  • Dimensions: 12.4" L x 8.4" W x 7.4" H
  • Net Weight: 7 lbs (3 kg)

Main Features

  • Connection: Serial, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 5 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.25"
Barcode Symbology Supported
  • Code 39
  • Code 39C
  • Code 93
  • Code 128 UCC
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 11
  • Codabar
  • Interleaved 2 of 5
  • EAN-8
  • EAN-13
  • UPC-A
  • UPC-E
  • MSI
  • Plessey
  • POSTNET
  • PDF-417
  • Maxi Code
  • Data Matrix
Peel Facility Yes
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 8 MB
Memory Technology SDRAM
Flash Memory 2 MB
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
Media Types & Handling
Media Type Label
Media Sensor
  • Reflective Media Sensor
  • Transmissive Media Sensor
  • Cover Open Sensor
Maximum Roll Diameter 5"
Maximum Label Width 4.40"
Label Core Size 1"
Fonts & Emulation
Language Emulation
  • WPL
  • ZPL
  • EPL
Physical Characteristics
Height 7.4"
Width 8.4"
Depth 12.4"
Miscellaneous
Additional Information
  • Compact Design
  • Easy Media Supplies loading
  • One Indicator LED (Two Color)
  • Font Rotations: 0, 90, 180, 270 degrees
Platform Supported PC
Country of Origin Taiwan
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Product document wpl305.pdf 633808402020 Product document wpl305.pdf MOD-WASP-WPL305
