Ubiquiti Networks

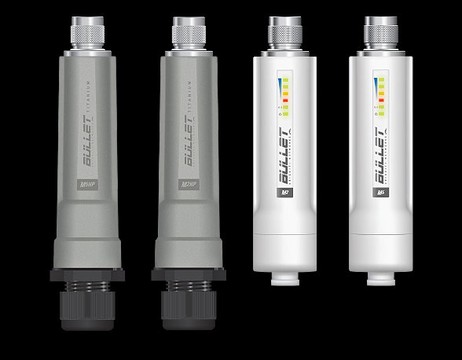

Ubiquiti Networks BULLETM2-HP Wireless Access Points

SKU:

BULLETM2-HP

Ubiquiti Bullet BULLETM2-HP IEEE 802.11n 100 Mbit/s Wireless Bridge - 31.1 Mile Maximum Outdoor Range - 1 x Network (RJ-45) - Ethernet, Fast Ethernet.
Description
ico-plus ico-minus

The Ubiquiti Networks Bullet M revolutionizes outdoor wireless deployment with its integrated design and zero-variable installation. Ideal for creating a powerful outdoor Access Point, Client, or Bridge, the Bullet M plugs directly into any antenna with a Type N female connector. Its robust weatherproof design ensures durability against harsh elements, while the enhanced receiver delivers impressive speeds of over 100Mbps across multi-kilometer distances. With AirMax technology, your networks will experience high throughput and low latency, making it a perfect choice for extensive connectivity needs.


Key Features
  • Zero Variable Deployment: Eliminate RF cable concerns and install effortlessly.
  • Robust Weatherproof Design: Built to withstand extreme weather conditions.
  • High Power Performance: Up to 600mW and supports speeds over 100Mbps.
  • Integrated AirMax Technology: Enhanced TDMA performance for scalable PtMP networks.
  • Signal Strength LED: Easy antenna alignment for optimized performance.

Specifications
  • Processor: Atheros MIPS 24KC, 400MHz
  • Memory: 32MB SDRAM, 8MB Flash
  • Networking Interface: 1 x 10/100 BASE-TX (RJ-45)
  • Operating Temperature: -40C to 80C
  • Dimensions: 15.2 x 3.7 x 3.1 cm
  • Weight: 0.18 kg
  • Power Rating: Up to 24V via Passive Power over Ethernet
  • Models: BM2HP (2.4GHz), BM5HP (5GHz)
  • Max Power Consumption: 7 Watts (M2), 6 Watts (M5)
Technical Specifications
ico-plus ico-minus
Technical Information
Wireless LAN Standard IEEE 802.11n
ISM Band Yes
UNII Band No
ISM Minimum Frequency 2.41 GHz
ISM Maximum Frequency 2.46 GHz
Antenna Connector N-Type
Outdoor Antenna Range 31.1 Mile
Wireless Transmission Speed 100 Mbit/s
Features
  • LED Indicator
  • Weather Proof
Interfaces/Ports
Ethernet Technology
  • Ethernet
  • Fast Ethernet
Number of Network (RJ-45) Ports 1
Network (RJ-11) No
PoE (RJ-45) Port No
PoE PD Port Yes
VGA No
HDMI No
Audio Line Out No
Serial Port No
USB No
Powerline No
Management Port No
Physical Characteristics
Height 1.2"
Width 1.5"
Depth 6"
Weight (Approximate) 6.35 oz
Miscellaneous
System Requirements

Linux SDK

Certifications & Standards
  • ETSI300-019-1.4
  • FCC Part 15.247
  • IC RS210
  • CE
IEEE Standards:
  • 802.11b
  • 802.11g
  • 802.11n
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document bullet-m.pdf BULLETM2-HP Product document bullet-m.pdf MOD-UBIQUITI-BULLET-M
