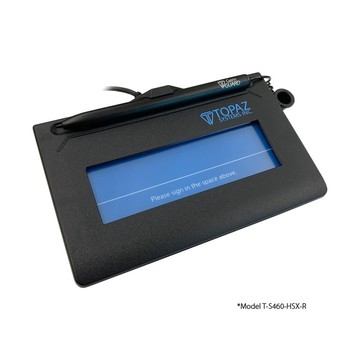

Topaz SigLite T-LBK460-BSB-RC Signature Pad Virtual serial USB, 3rd-gen touch-screen, 4.4 x 1.3 in, Antimicrobial, Replaceable coiled cable, Backlit LCD

The Topaz SigLite InkTouch Pad is a compact, professional-grade signature capture device designed for secure electronic signing at point-of-service, healthcare reception, finance counters, and mobile business workflows. Featuring a backlit LCD that displays "electronic ink" beneath the stylus, the pad delivers pressure-sensitive, forensic-quality capture suitable for authentication and record-keeping. Its small footprint and passive, batteryless stylus with antimicrobial protection facilitate shared-use environments while minimizing maintenance. With USB-based connectivity and broad Topaz software compatibility, the SigLite InkTouch Pad integrates into existing document and transaction systems to improve signer confidence, reduce paper handling, and support reliable, repeatable signature capture in high-volume or regulated settings.

Key Features

• Clear on-screen signing: Backlit/transflective LCD shows electronic ink under the pen tip for intuitive, confident signatures.
• Forensic-quality capture: Pressure-sensitive input and high-resolution biometric capture produce data suitable for authentication and verification workflows.
• Hygienic stylus: Passive, batteryless tethered stylus with GemGuard antimicrobial protection supports safe, shared use.
• Compact, durable design: Small footprint and rugged, batteryless sensor construction suit counters, kiosks, and mobile stations.
• Flexible connectivity and integration: USB-based connection (virtual serial/HID) and bundled Topaz software/SDKs simplify deployment and integration.

Specifications

• Brand: Topaz
• Product Name: Topaz SigLite InkTouch Pad
• Model / MPN examples: T-LBK460-BSB-RC, T-L460-HSB-R, T-LBK460-HSB-R
• Color: Black
• Display Type: LCD display / Backlit LCD (transflective)
• Signing Area / Active Area: 4.4 x 1.3 in
• Dimensions (examples): 6.0 x 6.3 x 1.7 in; 6.0 x 3.8 x 1.4 in; 6 x 3.8 x 0.7 in
• Connectivity: Virtual Serial via USB (wired) / Wired (USB); connectivity interfaces include USB (HID-USB), Virtual Serial via USB, Serial RS232, Ethernet (SecureSig)
• Interface Required: 1 x USB - 4 pin USB Type A
• Pen Type: Stylus / Passive, batteryless, tethered stylus (GemGuard antimicrobial)
• Touchscreen: Yes (variant dependent)
• Pressure Sensitivity: Yes
• Biometric Resolution and Rate: 377 pps, 410 ppi
• Input Resolution: 410 ppi
• Rated Signatures: 1,000,000
• Programmable PPI: Yes
• Backlighting / Backlight: Yes (backlit LCD); some variants noted non-backlit
• Replaceable Cable / Coiled Cable: Yes
• Included Software: Adobe Acrobat; Microsoft Excel; Microsoft Word; OPOS Drivers; pDoc SDKs; pDoc Signer; SigPlus Pro ActiveX; SigPlus Pro Java; Topaz eSign Emcee; Topaz SigAnalyze; Topaz SigCompare; Topaz SignMeIn; SigPlus Pro .NET; SigPlus Pro C++; SigPlusExtLite; SigTool Imager Plus; SigWeb
• Packaged Quantity: 1
• RoHS Compliant: Yes
• Warranty: 2 years
• Country of Origin (example): US
