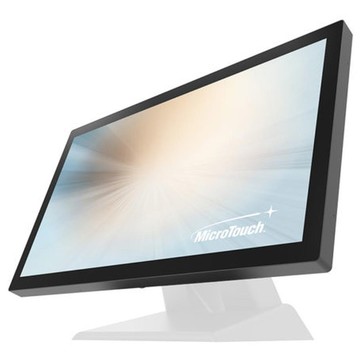

MICROTOUCH, 17'' SLIMLINE KIOSK, 1280X1024, VGA/HDMI/DP, 10 TOUCH POINTS, PCAP, 250NITS, NO STAND ORDER (IS-000-A1) SEPARATELY, 3 YEAR WARRANTY

The MicroTouch SLIMLINE-KIOSK All-in-One is a compact, commercial-grade touchscreen kiosk platform engineered for retail, hospitality, corporate and healthcare self-service applications. Built around a 17-inch 5:4 TFT LCD with a 1280 x 1024 native resolution and 10-point projected capacitive (P-CAP) touch, the Slimline design combines a slim footprint and VESA compatibility for flexible mounting. Industrial front protection and ingress ratings, broad video and peripheral interfaces, and a durable metal/plastic housing simplify deployment in high-traffic or exposed environments. The integrated all-in-one approach reduces cabling and installation time, while consistent brightness and a three-year warranty support reliable, long-term operation for B2B rollouts and kiosk fleets.

Key Features

• Responsive 10-point P-CAP: Projected capacitive multi-touch enables accurate, modern interactivity for self-service and transactional workflows.
• Practical 17" 5:4 display: 1280 x 1024 resolution on a 17-inch TFT LCD provides a balanced workspace for kiosk interfaces and forms.
• Flexible connectivity: HDMI, VGA (HD-15), DisplayPort plus USB 2.0 touch and serial (RJ-11) interfaces simplify integration with embedded PCs and external systems.
• Rugged front protection: IP65 front-panel rating and IPX1 rear protection help the unit withstand heavy public use and exposed installations.
• Slim, mountable all-in-one: Slimline all-in-one form factor with 100 x 100 mm VESA mount support reduces footprint and accelerates installation.

Specifications

• Product Reference: MicroTouch SLIMLINE-KIOSK All-in-One
• Brand: MicroTouch
• Model / Part Number (example): SK-170P-A1 / SK-170P-B1
• Screen Size: 17 in
• Aspect Ratio: 5:4
• Native Resolution: 1280 x 1024
• Display Type / Technology: LCD, TFT active matrix
• Touch Technology: Projected capacitive (P-CAP)
• Touch Points: 10
• Display Brightness: 250 cd/m²
• Brightness with Touchscreen: 225 cd/m²
• Contrast Ratio: 1000:1
• Horizontal Viewing Angle: 170°
• Vertical Viewing Angle: 160°
• Video Inputs / Interfaces: HDMI, VGA (HD-15), DisplayPort, USB 2.0 (touch), Serial (RJ-11)
• Ingress Protection Rating: IP65 (front), IPX1 (rear)
• VESA Mount: 100 x 100 mm
• Housing Material: Metal, Plastic
• Color: Black
• Dimensions (H x W x D): 12.1 x 14.5 x 1.9 in
• Weight: 7.94 lbs
• Power Consumption (Typical): 60 W
• Operating Temperature: 32 to 104 °F
• Operating Humidity: 20 - 80% (non-condensing)
• Certifications: CB 62368, CCC, FCC, UL 62368
• Warranty: 3 years
