MicroTouch

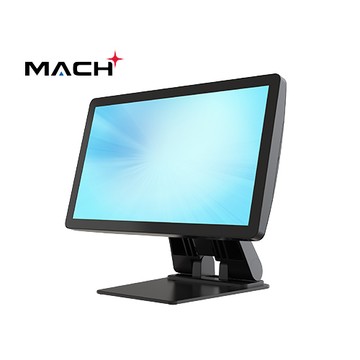

MicroTouch ClearView 156 Touch Monitor 15.6", 10 Touch Points, 450nits, Etched Anti-Glare, IP65, IK07

SKU:

M1-156DT-A2

Touchscreen Monitors, MicroTouch M1-156DT, 15.6″ desktop touch monitor, 1920×1080 Full HD, HDMI input, USB-A port, USB-C alt-DisplayPort, four USB-C peripheral ports, 10-point projected capacitive touch, 450 nits brightness, etched anti-glare, no stand, 3 year warranty
Description
ico-plus ico-minus

The MicroTouch M1-156DT 15.6" Touchscreen Monitor redefines interactive technology with stunning optical clarity and durability. Perfectly blending aesthetics with performance, this optically bonded display boasts an advanced etched anti-glare surface, ensuring crystal-clear visuals even in bright retail or industrial settings. With its range of connectivity options including USB-C and HDMI, this versatile monitor is ideal for various applications, making it a dependable choice for professionals and businesses alike.


Key Features
  • Size: 15.6" TFT LCD
  • Maximum Resolution: 1920 x 1080
  • Brightness: 450 nits (No Touch), 400 nits (P-CAP)
  • Contrast Ratio: 1000:1
  • Touch Points: 10
  • Surface Hardness: 7H durable glass
  • Warranty: 3 years

Specifications
  • Video Port: 1 x HDMI (up to 1920 x 1080 @60Hz)
  • Audio Port: 1x Audio-Output (3.5 mm Mini-Jack)
  • Power Input: 1x DC In 12V Jack
  • Physical Dimensions:
    • 378.03 x 227.34 x 32 mm (monitor only)
    • Net Weight: 1.85 kg
    • Gross Weight: 2.85 kg
    • Carton Dimensions: 343 x 499 x 171 mm
  • Operating Temperature: 0°C to 40°C, 20% ~ 80% RH (Non-Condensing)
  • Storage Temperature: -20°C to 60°C, 20% ~ 90% RH (Non-Condensing)
  • VESA Compatibility: 100 x 100 mm

Main Features

  • Touch: Yes

  • Connection: USB

  • Screen type: Capacitve

Documents
ico-plus ico-minus
Product document M1-156IC.pdf MOD-MICROTOUCH-15-6
