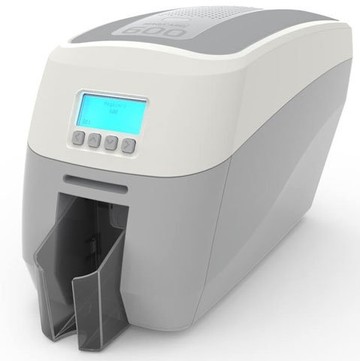

Magicard 600, Dual-Sided
3652-5021/2
Select model
The Magicard 600 ID Card Printer is your ultimate solution for high-resolution, secure, and efficient card printing. Seamlessly integrating into existing infrastructures, this state-of-the-art printer delivers vibrant colors and intricate details at a print speed of under 20 seconds per card. Offering standard Wi-Fi connectivity and an array of encoding options, including **magnetic stripe** and **smart card** capabilities, the Magicard 600 is designed to meet the highest standards in security compliance. With robust software updates and a comprehensive three-year warranty, you can print with confidence while improving your organization's ID management today.
Key Features:
- High-Resolution Printing: Delivers detailed prints at 600 x 300 dpi.
- Fast Performance: Prints up to 200 cards per hour with Holokote®.
- Enhanced Security: Customizable HoloKote® watermark for added visual protection.
- Wi-Fi Connectivity: Easy connection via supplied dongle.
- Plug and Play: Simplifies setup with USB integration.
- 3-Year Warranty: Comprehensive coverage ensures peace of mind.
Specifications:
- Print Mode: Colour dye sublimation, monochrome thermal, rewritable.
- Print Speed: Colour: 19 seconds, Monochrome: 5 seconds.
- Card Capacity: 100 card feeder, 70-card stacker.
- Interfaces: High Speed USB 2.0, USB 3.0, 10/100 Ethernet, Wi-Fi.
- Operating Environment: 10°C to 30°C / 50°F to 85°F.
- Card Types: CR80/CR79 PVC, magnetic stripe, smart cards, HoloPatch.
- Weight: 4.7 kg / 10.4 lb.
- Dimensions: 475.5mm L x 211.5mm W x 248mm H.
Main Features
-
Printing Side: Double Side
-
RFID: Yes
-
Use Frequency: Between 500 and 5000 cards
-
Connection: USB, Ethernet
| Technical Information | |
|---|---|
| Recommended Use | Card Print |
| Print Color Capability | Color |
| Printing Capability | Double Sided |
| Maximum Mono Print Speed | 5 Second |
| Maximum Color Print Speed | 19 Second |
| Maximum Print Resolution (dpi) | 600 x 300 |
| Application/Usage | Desktop |
| Connectivity Technology | Wireless |
| Print Technology | Dye Sublimation/Thermal Transfer |
| Interfaces/Ports | |
|---|---|
| USB Host | Yes |
| USB | Yes |
| Network & Communication | |
|---|---|
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11b/g/n |
| Media Types & Handling | |
|---|---|
| Media Type |
|
| Media Size |
|
| Software | |
|---|---|
| Operating System Supported | Windows 7, 8, 10 (32 and 64bit) Windows server 2008, 2012, 2016. Linux with CUPS support and Mac OS X 10.9.0 upwards. |
| Power Description | |
|---|---|
| Power Source | AC Supply |
| Input Voltage |
|
| Environmental Conditions | |
|---|---|
| Operating Temperature | 50°F (10°C) - 86°F (30°C) |
| Physical Characteristics | |
|---|---|
| Height | 9.8" |
| Width | 8.3" |
| Depth | 18.7" |
| Weight (Approximate) | 10.36 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Cables Included | USB |
| Platform Supported |
|
| Country of Origin | Great Britain |
| Warranty | |
|---|---|
| Limited Warranty | 3 Year |
