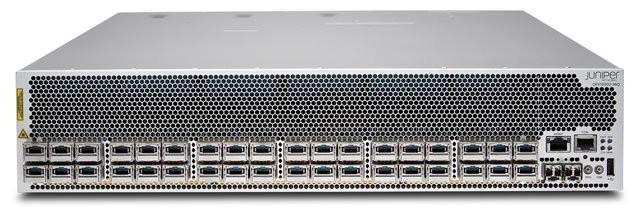

Juniper Networks QFX10002-72Q-T Ethernet Switch

The Juniper Networks QFX10000 Ethernet Switch is designed for modern data centers, offering exceptional scalability and performance. With up to 96 Tbps of throughput, this modular switch allows seamless transitions across 10GbE, 40GbE, and 100GbE interface speeds. Ideal for cloud and data center operators, it delivers unparalleled intelligence and analytics, ensuring high-quality application performance. Built on a midplane-less architecture, the QFX10000 provides robust flexibility and future-proofing for evolving network demands, making it a vital component of efficient network infrastructures.

• Industry-leading throughput: Up to 96 Tbps, scalable to over 200 Tbps.
• High-density ports: Support for up to 480 100GbE ports in a single chassis.
• Flexible Deployment: Layer 2 and Layer 3 configurations with Juniper MC-LAG.
• Advanced automation: Integration with VMware NSX, OpenContrail, and other SDN controllers.
• Rich analytics: Powered by Q5 ASICs, offering deep insights into application performance.

• Operating System: Junos OS
• System Throughput: Up to 96 Tbps
• Maximum Ports:
  • 10GbE: 1,152 (QFX10008), 2,304 (QFX10016)
  • 40GbE: 288 (QFX10008), 576 (QFX10016)
  • 100GbE: 240 (QFX10008), 480 (QFX10016)
• Power Supply: Options for AC and DC; redundant configurations available
• Cooling: Front-to-back airflow; dual hot-swappable fan trays
• Dimensions:
  • QFX10008: 13U, 280 lbs
  • QFX10016: 21U, 491 lbs
• Warranty: Standard one-year warranty
