Honeywell

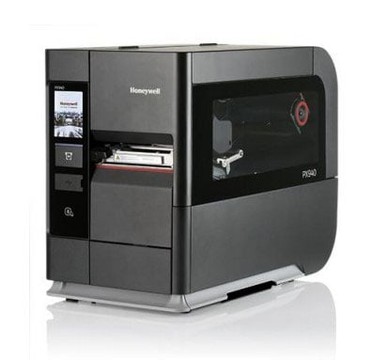

Honeywell PX940 Barcode Label Printer 300 dpi, 11.81 in/s, Full Touch Display, Rewinder, Peeler, Real Time Clock

SKU:

PX940A00100060302

Industrial Printer, Honeywell PX940, Thermal Transfer, 300 dpi, 12ips, Real Time Clock, Ethernet/RS-232/USB /USB Host, Full Touch Display, Universal Firmware, 3" Media Hub, Ribbon Ink In/Out, Low Power Bluetooth, Label Taken Sensor, US Power Cord
Description
ico-plus ico-minus

Experience seamless and error-free printing with the Honeywell PX940 Barcode Label Printer, an industrial-grade solution tailored for high-performance applications. Incorporating integrated label verification technology, this printer ensures every label is printed with 100% accuracy, minimizing the risk of costly fines and returns due to unreadable barcodes. With rapid print speeds of up to 350 mm/s, the PX940 meets the evolving demands of various industries, from pharmaceuticals to logistics. Its rugged design and user-friendly interface make maintenance a breeze, offering operational intelligence and predictive analytics for maximized uptime.


Key Features
  • Integrated label verification technology for error-free printing and instant status updates.
  • High precision printing with a tolerance of +/- 0.3 mm (0.012 in), eliminating unreadable labels.
  • Operational Intelligence software for predictive analytics and printer health monitoring.
  • Smart printing capability allows configuration without a host computer.
  • User-friendly interface with a multilingual touchscreen and easy maintenance features.

Specifications
  • Print Method: Thermal Transfer and Direct Thermal
  • Print Speed: 50-350 mm/s (2-14 ips) at 203 dpi; 50-300 mm/s (2-12 ips) at 300 dpi
  • Print Resolution: 203 dpi and 300 dpi options
  • Connectivity: USB 2.0, Ethernet 10/100 Mbps, RS-232
  • Media Width: 20 mm to 114 mm (0.79 in to 4.5 in)
  • Weight: 23 kg (50.71 lbs) or 23.5 kg (51.81 lbs) for verifier version
  • Operating Temperature: +5°C to +40°C (+41°F to +104°F)

Main Features

  • Equipment Format: Desktop

  • Rugged: Industrial

  • Connection: Serial, USB, Ethernet, Bluetooth

  • Real Time Clock: Yes

  • Optional Upgrades: Rewinder, Peeler, Liner take-up

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 11.81 in/s
Maximum Print Resolution (dpi) 300
Maximum Print Length 86.64"
Maximum Print Width 4.16"
Barcode Symbology Supported
  • Code 39
  • HIBC Code 39
  • Code 93
  • Code 128
  • ISBT-128
  • HIBC Code 128
  • EAN 128
  • GS1-128
  • EAN-8
  • EAN-13
  • UPC-A
  • Interleaved 2 of 5
  • SCC-14
  • RSS14E
  • GS1 DataBar Expanded
  • Data Matrix
  • ISBT Data Matrix
  • QR Code
Peel Facility Yes
Real Time Clock Yes
Rewinder Yes
Application/Usage
  • Desktop
  • Industrial
  • Transportation & Logistic
  • Pharmacy
  • Healthcare
Features Rugged
Mobile Device Printing Yes
Memory
Standard Memory 1 GB
Interfaces/Ports
Serial Port Yes
USB Host Yes
USB Yes
Network & Communication
Ethernet Yes
Bluetooth Yes
Near Field Communication (NFC) Yes
Display & Graphics
Display Screen Yes
Screen Size 3.5"
Display Screen Type LCD
Touchscreen Yes
Media Types & Handling
Media Type
  • Label
  • Gap
  • Black Mark
  • Notch
  • Tag
  • Continuous Label
Media Sensor Label Taken Sensor
Media Thickness 10 mil
Maximum Roll Diameter 8.37"
Maximum Label Width 4.49"
Maximum Label Length 0.24"
Fonts & Emulation
Language Emulation
  • ZPL II
  • ZSim2
  • Direct Protocol (DP)
  • Fingerprint
  • Intermec Printer Language (IPL)
  • DPL
  • WMS
  • XML
Power Description
Power Source AC Supply
Frequency
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature 41°F (5°C) - 104°F (40°C)
Storage Temperature 158°F (70°C)
Physical Characteristics
Height 15.7"
Width 10.3"
Depth 19.9"
Weight (Approximate) 50.71 lb
Miscellaneous
Platform Supported
  • PC
  • Android
  • iOS
Energy Star Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
