Honeywell

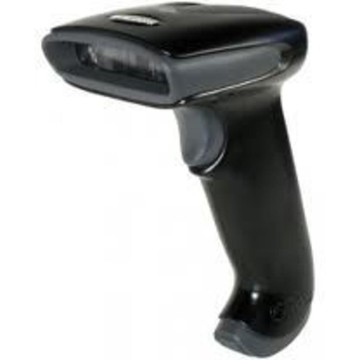

Honeywell Hyperion 1300g Barcode Scanner High-Density, Corded, 1D Linear Imager, Single Line, Black

SKU:

1300G-2-N

Corded Scanner, Honeywell Hyperion 1300g, 1D Imager, General Purpose, Scanner Only (No Included Cables), Handheld, Black
Description
ico-plus ico-minus

The Honeywell Hyperion 1300g Barcode Scanner is your ultimate solution for efficient and reliable scanning. Balancing performance, durability, and ergonomics, this linear-imaging scanner excels in scan-intensive and light industrial settings. With no moving parts, it ensures longevity while delivering fast and intuitive barcode reading, reaching up to 18 inches. Designed to provide aggressive scanning performance, the Hyperion 1300g is perfect for businesses demanding reliability and enhanced productivity from their handheld devices.


Key Features
  • Superior Hand-Held Scanning: Increases throughput with intuitive and aggressive scanning.
  • Highly Versatile: Reads barcodes up to 18 inches without needing specialty scanners.
  • Class-Leading Durability: Design minimizes service costs with no moving parts and impact-resistant bumpers.
  • Comfortable, Ergonomic Design: Optimized for extended handheld use.
  • Automatic Interface Detection: Eliminates time-consuming programming configuration.
  • Remote Management Software: Conveniently manage multiple scanners from one location.

Specifications
  • Dimensions: 150 mm x 112 mm x 79 mm (5.9" x 4.4" x 3.1")
  • Weight: 160 g (5.6 oz)
  • Input Voltage: 5V ± 5%
  • Operating Power: 1000mW; 200 mA (typical) @ 5V
  • Standby Power: 625mw; 125 mA (typical) @ 5V
  • Host System Interfaces: Multi-Interface (includes RS232, KBW, USB)
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Humidity: 0 to 95% non-condensing
  • Drop/Tumble: Withstands 50 drops from 1.5m
  • Environmental Sealing: IP41
  • Light Levels: 0-70,000 lux (direct sunlight)
  • Scan Rate: Up to 270 scans per second
  • Decode Capabilities: Reads standard 1D and GS1 DataBar™ symbologies
  • Warranty: 5 years

Main Features

  • Rugged: Industrial

  • Range: Short Range

  • Connectivity: Corded

  • Connection: Serial, USB

  • Scanner Capability: 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Barcode Symbology Supported
  • Reads Standard 1D and GS1 DataBar Symbologies
Image Sensor Type
  • Linear
  • Imager
Scan Rate 270 scan/s
Depth of Field
  • 50 mm - 200 mm (2.0" - 8") @ 5.0 mil
  • 40 mm - 300 mm (1.5" - 12") @ 7.5 mil
  • 30 mm - 380 mm (1.0" - 15") @ 10 mil
  • 10 mm - 460 mm (.5" - 18") @ 13 mil
  • 30 mm - 660 mm (1.0" - 26") @ 20 mil
Scan Pattern
  • Single Line
  • Linear
Scanner Range Short Range
Scanning Distance 18"
Stand Included Yes
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Motion Tolerance 20 in/s
Maximum Ambient Light 70000 lux
Drop Specification
  • Designed to withstand 50 drops on concrete from 1.5m
Minimum Print Contrast 20%
Interfaces/Ports
Host Interface
  • Serial
  • USB
  • Keyboard Wedge
Power Description
Maximum Operating Power Consumption 1 W
Standby Current 125 mA
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Black
Product Color Black
Weight (Approximate) 5.60 oz
Miscellaneous
Package Contents
  • 1 x Hyperion 1300g Linear-Imaging Scanner
  • 1 x Goose Neck Stand
Ingress Protection (IP) Rating IP41
Application/Usage Industrial
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 5 Year
