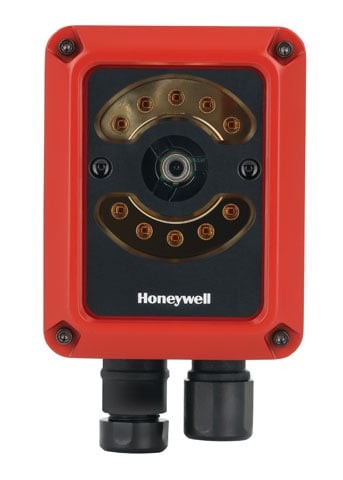

Honeywell HF810 Fixed Mount Barcode Scanner DPM, IP65, Ethernet, RS232, Black

Honeywell's HF81X Barcode Scanner series, including the HF810 and HF811 models, is engineered to excel in diverse environments, ensuring seamless integration into package sorting and light manufacturing processes. These fixed-mount 2D industrial scanners boast enhanced encoding and decoding technology, providing powerful performance with dedicated DPM capabilities in a compact design. The HF81X series is ideally suited for warehouse management solutions, optimizing workflows with advanced scanning and flexible configurations that make setup quick and efficient.
Key Features

• Enhanced Performance: Dedicated DPM algorithm for rapid scanning in manufacturing workflows.
• Flexible Configuration: Network-ready with I/O functionality for accessories such as external triggers and auxiliary lighting.
• Plug and Play: DataMax Plus configuration tool enables rapid setup.
• Autotune Function: Optimizes scanning parameters with the press of a button.

Specifications

• Mechanical:
  • Dimensions (H x W x D): 70 mm x 55 mm x 45 mm
  • Weight: 180g
  • Lens: Liquid Lens
• Electrical:
  • Input Voltage: 240V
  • Output Current: 24VDC/5A
  • Communication: RS232, RS485, TCP/IP, Field Bus Protocol (Profinet, EthernetIP, Modbus TCP)
• Environmental:
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to 70°C
  • Humidity: 5% to 95% relative humidity, non-condensing
  • IP Rating: IP65
• Scan Performance:
  • Scan Pattern: Area image
  • HF811 Resolution: 2 MP
  • HF810 Resolution: 0.5 MP
  • Scan Angle: Horizontal: 20-39° (Narrow vs. Wide FOV), Vertical: 11-22° (Narrow vs. Wide FOV)
  • Decode Capability: Reads standard 1D, PDF, 2D (QR, Datamatrix, Maxicode, Aztec) DPM
• Warranty: 3-year factory warranty
