Honeywell

CT40XP,WWAN,4G/32G,flex range,USB type

SKU:

CT40P-L1N-28R11BF

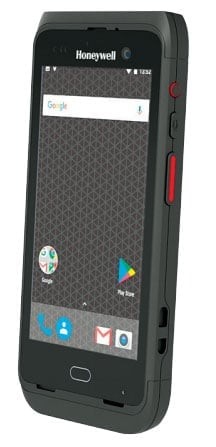

Mobile Computer, Honeywell CT40 XP, Android 1D/2D Imager, Wireless, IP65/IP67, On-Screen Touch, Phone-size, Bluetooth, 4GB/32GB Memory, N6803 Engine, Standard Battery, Hot Swap, Metal Battery Latch Button
Description
ico-plus ico-minus

The Honeywell CT40 XP Mobile Computer is the ultimate solution for store associates and mobile workers, facilitating seamless daily workflows such as inventory lookup and last-mile delivery. Built on Honeywell's Mobility Edge™ platform, it offers enhanced security and accelerates deployment, ensuring a long lifecycle. With the cutting-edge FlexRange™ imager, the CT40 XP captures barcodes accurately from mere centimeters up to 10 meters away. Ergonomically designed for comfort during extended use, this device also features rugged durability to withstand challenging environments.


Key features:

  • FlexRange™ imager: High-accuracy barcode scanning from 2 cm to 10 m (32.8 ft).
  • Warm swap capability: Allows battery replacement without turning off the device.
  • Device Finder feature: Easily track lost devices even when batteries are drained.
  • Rugged design: Survives multiple drops from 1.8 m (6 ft) and includes a protective boot.
  • Disinfectant-ready housing: Easily cleanable for enhanced hygiene.

Specifications:

  • Dimensions: 162 mm x 77 mm x 18.2 mm (6.4 in x 3.0 in x 0.7 in)
  • Weight: 289 g (10.1 oz) with battery
  • Display: 12.7 cm (5.0 in), 1920 x 1080 resolution
  • Processor: Qualcomm® Snapdragon 660, 2.2 GHz
  • Memory: 4 GB RAM, 32 GB Flash (expandable up to 512 GB)
  • Batter: Li-Ion, 4020 mAh; 12+ hours of operation
  • Connectivity: Wi-Fi, WWAN, Bluetooth® 5.0
  • Operating Temperature: -20°C to +50°C (-4°F to +122°F)
  • Warranty: One-year factory warranty

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • GPS: Yes

  • Connection: Bluetooth, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model N6803
Image Sensor Type Imager
Scanner Range FlexRange
Scanning Distance 32.81 ft
Google Mobile Services (GMS) Yes
Sensor Type
  • Light Sensor
  • Proximity
  • Accelerometer
  • Gyroscope
Features
  • Water Resistant
  • Gorilla Glass 5
  • Push-to-talk
  • VoIP
Drop Specification
  • Multiple 1.2 m (4 ft) drops to concrete at -10°C to +50°C (+14°F to +122°F).
  • Multiple drops from 1.8 m (6 ft) to concrete per MIL-STD-810G with rubber boot
Processor & Chipset
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported
  • microSD
  • SDXC
  • SDHC
  • SDIO
Display & Graphics
Screen Size 5"
Screen Mode HD
Screen Resolution 1920 x 1080
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Keyboard/Keypad
Buttons & Keys

Volume up/down key, left/right scan, power button, push to talk button

Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac/r/k/mc
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0
Near Field Communication (NFC) Yes
Cellular Network Supported GSM
Cellular Data Connectivity Technology
  • LTE Advanced
  • LTE
  • UMTS
  • HSPA+
  • 3G
  • 2G
  • GPRS
  • EDGE
  • EVDO
  • 4G
GPS Yes
Global Navigation Satellite System (GNSS) Supported BeiDou/Galileo/GLONASS
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Front Camera Yes
Front Camera Resolution 8 Megapixel
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android 9.1 Pie
Upgradable Operating System Android 12
Power Description
Power Source Battery
Battery Information
Battery Capacity 4020 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.85 V
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -22°F (-30°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Phone-size
Rugged Yes
Weight (With Battery) 10.19 oz
Miscellaneous
Package Contents
  • CT40 XP Handheld Computer
  • Battery
Application/Usage
  • Retail
  • Logistics
Ingress Protection (IP) Rating
  • IP67
  • IP65
Warranty
Limited Warranty 1 Year
Additional Warranty Information

One-year factory warranty
