Fargo

HDP6600 FD/FTR/L1M

SKU:

94670

HID HDP6600, Dual Sided Printer with 1 Material Laminator and Flattener, 3 Year Warranty, Lifetime Printhead Warranty, Must be ASP Certified to Purchase
Prices could not be updated.
Description
ico-plus ico-minus

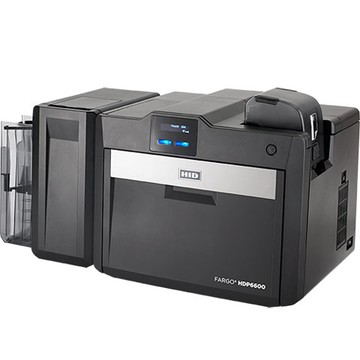

The HID FARGO HDP6600 is a high-definition retransfer card printer/encoder designed for medium-to-large organizations that demand high-volume, professional-grade credential issuance. Using HDP Dye-Sublimation and Resin Thermal Transfer technology, it delivers 600 dpi (23.6 dots/mm) print resolution with up to 16.7 million colors, producing sharp text, vivid imagery, and precisely defined barcodes on CR-80 cards. Capable of printing up to 230 cards per hour in batch mode, it suits corporate ID programs, government agencies, universities, and healthcare facilities. The modular architecture supports optional dual-sided printing and LMX card lamination, while USB 2.0 and 100 Mbps Ethernet connectivity with an internal print server enable flexible deployment. AES-256 data encryption and Resin Scramble Data Protection safeguard credential integrity, and a SmartScreen OLED control panel keeps operation straightforward.
Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document hdp6600.pdf 94670 Product document hdp6600xe.pdf MOD-HDP6600 Product document hdp6600.pdf MOD-HDP6600
FAQs
ico-plus ico-minus
What print resolution and speed does the HID HDP6600 card printer deliver?
The HID HDP6600 prints at 600 dpi (23.6 dots/mm) using HDP Dye-Sublimation / Resin Thermal Transfer, and reaches up to 230 cards per hour (16 seconds per card) in batch mode with a YMCK ribbon including transfer.
What connectivity options does the HID HDP6600 support for network integration?
The HID HDP6600 offers USB 2.0 and Ethernet (100 Mbps) with an internal print server that is both IPv4- and IPv6-compatible and supports SNMPv3.
What card types and sizes does the HID HDP6600 accept?
The printer accepts standard CR-80 cards (3.375" L x 2.125" W) with a thickness of .030" (30 mil) to .040" (40 mil), in ABS, PVC, PET, PETG, proximity, smart, mag stripe, and polycarbonate formats; however, ABS and PVC cards are not recommended for use within the optional lamination module.
What encoding options are available for the HID HDP6600?
Optional encoding modules include ISO magnetic stripe encoding (dual high- and low-coercivity, tracks 1, 2, and 3), contact smart card encoding (reads and writes all ISO7816 1/2/3/4 memory and microprocessor smart cards), and contactless encoding supporting 125kHz HID Prox and 13.56 MHz technologies including iCLASS Standard/SE/SR/Seos, MIFARE Classic, MIFARE Plus, MIFARE DESFire EV1, ISO 14443 A/B, and ISO 15693.
What is the warranty coverage for the HID HDP6600 card printer?
Units purchased on or after August 1, 2024 carry a four-year printer warranty including one year of free loaner support with an option to purchase a second year of loaner support (U.S. only), plus a lifetime printhead warranty with unlimited card passes; units purchased prior to August 1, 2024 include a three-year printer warranty.
Which industries and use cases is the HID HDP6600 designed to serve?
The HID HDP6600 is designed for medium-to-large corporations, universities, healthcare facilities, government agencies, and service bureaus that require high-volume issuance of secure, multi-functional ID cards for purposes such as visual identification, physical and logical access control, time and attendance, and cashless payment.
