Epson

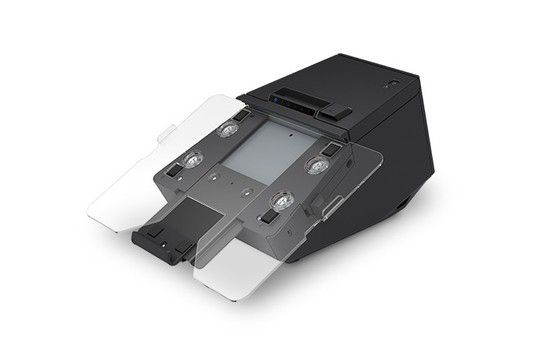

Epson TM-M30II S Receipt Printer All-in-one, Autocutter, Bluetooth, Black

SKU:

C31CH63502

The Epson C31CH63502 pairs Bluetooth 3.0 and Fast Ethernet connectivity with an automatic cutter rated for 2,200,000 cuts, making it a durable direct thermal receipt printer for mobile POS and counter-based POS environments. It prints monochrome receipts at up to 9.84 in/s at 203 dpi, handling thermal paper up to 3.13 inches wide and 3.15 mil thick on rolls to 3.27 inches in diameter. USB Type B and Wireless LAN add further connectivity options, and the unit supports iOS, Android, Windows, Mac OS X and GNU/Linux platforms. Drop-in paper loading works from the top or front, and horizontal or vertical installation lets operators adapt placement to available counter space. Maximum power consumption is 32.80 W, dropping to 1.60 W in standby, within an operating range of 41 degrees F to 113 degrees F and 10% to 90% relative humidity. Barcode support spans 17 symbologies including QR Code, Data Matrix, PDF417 and Aztec Code, with an MTBF of 41.1 years. The 7.70 lb chassis measures 11.4 inches wide by 12.7 inches deep by 6.5 inches tall and carries RoHS compliance.
Prices could not be updated.
Description
ico-plus ico-minus

The Epson TM-M30II-S All-in-one mPOS solution is a compact, direct thermal receipt printer engineered for modern retail, hospitality and mobile point-of-sale environments. Designed to consolidate a tablet mount and receipt printer into a single footprint, this mPOS hub streamlines checkout stations, reduces cable clutter and supports fast transaction workflows. It delivers reliable 203 dpi output at speeds up to 250 mm/s, flexible media support (58 mm and 80 mm), broad wired and wireless connectivity, and peripheral integration to power tablet-based POS setups. Built for continuous daily use, the solution prioritizes ease of installation, durable components and compatibility with iOS, Android, Windows and Linux platforms.

Key Features

  • All-in-one mPOS design: Integrated tablet mount and receipt printer reduce countertop space and simplify cable management for cleaner checkout points.
  • High-speed thermal printing: Direct thermal engine produces crisp 203 dpi receipts at up to 250 mm/s to keep queues moving in high-traffic environments.
  • Extensive connectivity: Multiple interfaces including USB, Ethernet, Bluetooth, Wi‑Fi, NFC, Lightning and microSD enable flexible deployment across POS architectures.
  • Peripheral and power support: Built to accommodate POS peripherals via USB Type-A/B and USB host ports, with integrated power supply and tablet charging capabilities to support a complete checkout station.
  • Durable components: Long-life printhead and autocutter durability minimize downtime and maintenance for continuous retail and hospitality operation.

Specifications

  • Brand: Epson
  • Model: TM-M30II-S
  • Product Name: Epson FlexiConnect Receipt Printer / All-in-one mPOS solution
  • Printing Technology: Direct thermal
  • Print Resolution: 203 dpi
  • Maximum Print Speed: 250 mm/s
  • Print Width: 80 mm (3 in)
  • Supported Paper Widths: 58 mm, 80 mm
  • Connectivity: USB, USB-B, USB-A, Ethernet, Bluetooth, Wi‑Fi, NFC, Lightning, microSD (varies by configuration)
  • Command Languages: ESC/POS, ePOS
  • Built-in Tablet Mount: Yes
  • Supported USB Peripheral Devices: Supports connection of multiple USB peripherals
  • USB Type-A Ports: Includes USB Type-A ports for peripherals and charging
  • Automatic Cutter Life: 2,200,000 cuts
  • Print Head Life: 150 km
  • Paper Saving (Max Reduction): 49%
  • Supported Tablet Size: 7" – 8.5"
  • Power Supply: Integrated power supply
  • Power Input: 24 V DC
  • Mounting Options: Horizontal, Vertical, Wall
  • Operating Temperature Range: 5 - 45 °C
  • Available Colors: Black, White
  • Weight: Approximately 2.9–3.5 kg (varies by configuration)
  • Dimensions (examples): 140 x 214 x 255 mm; 289 x 166 x 322 mm (varies by configuration)
  • Compatible Operating Systems: iOS, Android, Windows, Linux

Main Features

  • POS: Yes

  • Equipment Format: Mobile

  • DPI: 203 dpi

  • Case color: Black

  • Connection: Bluetooth, USB

  • Optional Upgrades: Cutter

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 9.84 in/s
Maximum Print Resolution (dpi) 203
Barcode Symbology Supported
  • UPC-A
  • UPC-E
  • Data Matrix
  • Aztec Code
  • Codabar (NW-7)
  • GS1-128
  • PDF417
  • QR Code
  • ITF
  • GS1 DataBar
  • Code 93
  • Code 39
  • Composite Symbology
  • Maxi Code
  • Code 128
  • EAN-8 (JAN8)
  • EAN-13 (JAN13)
Application/Usage
  • Mobile POS
  • Business
  • POS System
Features
  • Drop-in Paper Load
  • Power Saving Mode
  • Paper Saving Mode
  • Compact
Mobile Device Printing Yes
Mean Time Between Failures (MTBF) 41.1 Year
Mean Cycles Between Failures (MCBF) 65000000
Character Sets
  • 95 Alphanumeric
  • 18 International
  • 128 x 43 Graphic
  • Korean
  • Japanese
  • Simplified Chinese
  • Traditional Chinese
Installation Horizontal/Vertical
Connectivity Technology Wired & Wireless
Fonts Included
  • Font A: 12 x 24
  • 48 cpl (default)
  • Font B: 10 x 24
  • 36 cpl (Korean)
  • 57 cpl
  • 28 cpl (Japanese)
  • 64 cpl
  • Font C: 9 x 17
  • Kanji Font A: 24 x 24
  • Kanji Font B: 20 x 24
  • 24 cpl
Print Technology Direct Thermal
Interfaces/Ports
USB Yes
USB Standard USB Type B
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Bluetooth Yes
Bluetooth Version 3.0
Wireless LAN Yes
Cutter
Cutter Yes
Cutting Method Automatic
Cutter Life 2200000 Cuts
Media Types & Handling
Media Type
  • Receipt
  • Thermal Paper
Media Sensor
  • Full End Sensor
  • Paper End Sensor
Media Thickness 3.15 mil
Maximum Roll Diameter 3.27"
Maximum Label Width 3.13"
Software
Operating System Supported
  • iOS
  • Android
  • Windows
  • Mac OS X
  • GNU (Linux)
Power Description
Power Source Power Adapter
Maximum Power Consumption 32.80 W
Standby Power Consumption 1.60 W
Frequency
  • 60 Hz
  • 50 Hz
Environmental Conditions
Operating Temperature 41°F (5°C) - 113°F (45°C)
Operating Relative Humidity 10% - 90%
Physical Characteristics
Color Family Black
Product Color Black
Height 6.5"
Width 11.4"
Depth 12.7"
Weight (Approximate) 7.70 lb
Miscellaneous
Power Adapter Included Yes
Platform Supported
  • PC
  • iOS
  • Android
  • Mac
Noise Level 55 dB
Environmental Compliance Restriction of Hazardous Substances (RoHS)
