Epson

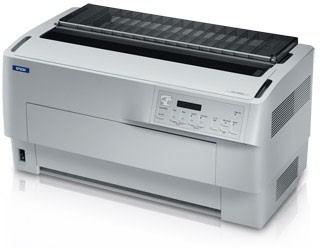

DFX-9000 Serial Impact Printer, High Volume, 9-Pin, Wide Format, 9-Pin, Serial, Parallel and USB Interfaces) - Color: Light Gray

SKU:

C11C605001

Rated at 1550 cps mono print speed, the Epson C11C605001 is a 9-pin impact dot matrix printer built for sustained wide-format output at a 20,000-hour MTBF and a 100,000-page duty cycle. Bi-directional printing across 136 columns supports continuous forms from 3 to 16.5 inches wide, multi-part forms up to 1 original plus 9 copies from the front tractor and 1 original plus 6 copies from the rear, and labels down to 2.5 in x 0.94 in. Parallel, serial and USB 1.1 interfaces connect to existing or current systems, with optional Twinax, Coaxial and Fast Ethernet expansion via the type-B slot. The 128 KB standard memory, LCD display, Epson ESC/P and PPDS emulation, and 11 character tables with 13 international character sets broaden compatibility. Operating at 200 W from 120 V AC or 230 V AC, the desktop chassis weighs 75 lb and measures 27.6 in wide by 14.9 in deep by 14.3 in tall. Energy Star compliant, it carries a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Epson FX-890 is a 9-pin dot matrix printer designed for businesses and operations that depend on high-volume, continuous-form printing day in and day out. Built around impact dot matrix technology, it handles a broad range of media — including continuous forms, plain paper, labels, envelopes, and roll paper — making it well suited for logistics, warehousing, manufacturing, finance, and retail back-office environments. Print speeds reach up to 680 characters per second in Ultra Speed Draft mode, while an MTBF rating of 20,000 hours supports long, uninterrupted production runs. A 400 million character print head life keeps maintenance demands low, and support for Epson ESC/P, IBM PPDS, and Oki Microline emulations ensures straightforward integration with existing systems via standard Parallel and USB connections.

Main Features

  • Case color: White

  • Connection: Serial, USB

  • Printing Technology: Dot Matrix

Technical Specifications
ico-plus ico-minus
Technical Information
Print Color Capability Monochrome
Maximum Mono Print Speed (cps) 1550
Number of Pins 9-pin
Number of Columns 136
Memory
Standard Memory 128 KB
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
USB Standard USB 1.1
Display & Graphics
Display Screen Type LCD
Media Types & Handling
Media Type
  • Continuous Form
  • Multiple Part Form
  • Label
Media Size
  • Custom Size
  • 3"
  • 16.50"
  • 17"
  • 2.50" x 0.94"
Media Handling
  • Push Tractor - Front
  • Push Tractor - Rear
Maximum Print Size 17"
Fonts & Emulation
Language Emulation
  • Epson ESC/P
  • PPDS
Reliability
MTBF 20000 Hour
Duty Cycle 100000
Power Description
Power Source AC Supply
Input Voltage
  • 120 V AC
  • 230 V AC
Operating Power Consumption 200 W
Frequency 60 Hz
Physical Characteristics
Form Factor Desktop
Product Color White
Height 14.3"
Width 27.6"
Depth 14.9"
Weight (Approximate) 75 lb
Miscellaneous
Additional Information
  • Print direction (Graphics Mode): Unidirectional (bidirectional via software)

Character Sets:

  • 11 character tables
  • 13 international character sets

Paper Feed Methods:

  • Dual push tractors/paper paths: Automatic back-out and loading
  • Automatic paper thickness adjustment
  • Automatic paper width detection
  • Micro adjustment for top-of-form and tear-off mode
  • Adjustable tractor feed

OPTIONAL interfaces (Not included):

  • Twinax
  • Coaxial
  • Fast Ethernet

Paper Handling:

  • Labels: 2.5 inch x 0.94 inch (minimum)
  • Page length: 3.5 inch minimum for forms with labels
  • Continuous forms size:
  • Width: 3 - 16.5 inch
  • Length: 3 - 17 inch
  • Multi-part Forms:
  • Front: 1 original + 9 copies
  • Rear: 1 original + 6 copies
Certifications & Standards

Energy star compliant
Platform Supported PC
Energy Star Yes
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document dfx-9000.pdf C11C605001 Product document mod-epson-fx-dot-matrix-printers-epson-receipt-printers-epson-fx-2190n.pdf MOD-EPSON-FX-DOT-MATRIX-PRINTERS Product document mod-epson-fx-dot-matrix-printers-epson-receipt-printers-epson-fx-890ii.pdf MOD-EPSON-FX-DOT-MATRIX-PRINTERS
FAQs
ico-plus ico-minus
What print technology and speed does the Epson FX Dot Matrix Printer use?
The Epson FX Dot Matrix Printer uses 24-pin impact dot matrix technology and prints at up to 529 characters per second in High-Speed Draft mode, 330 cps in Draft mode, and 110 cps in Letter Quality mode.
What interfaces does the Epson FX Dot Matrix Printer support for connecting to existing systems?
It supports Bidirectional Parallel, USB, and an optional Type B interface card slot, giving flexibility for integration with a range of legacy and current systems.
How reliable is the Epson FX Dot Matrix Printer, and what is its expected service life?
The printer is rated at 20,000 POH MTBF, with a print head life of 400 million characters and a ribbon cartridge life of 8 million characters, minimizing maintenance and downtime.
What paper and form types can the Epson FX Dot Matrix Printer handle?
It accommodates both cut-sheet and continuous forms, supporting multipart documents up to 5 parts thick with a maximum paper thickness of .018 inches.
What warranty does the Epson FX Dot Matrix Printer carry?
It is backed by a three-year limited warranty along with Epson's service and support.
What are the physical dimensions and power requirements of the Epson FX Dot Matrix Printer?
The printer measures 6.3 inches high, 23.2 inches wide, and 13.8 inches deep, weighs 21 lbs, and operates on 100 to 240V AC power.
