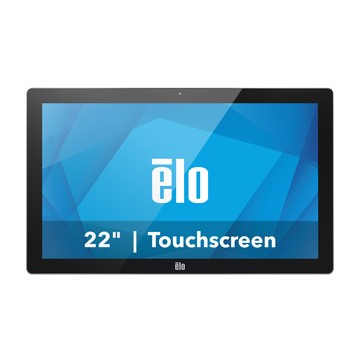

Elo I-Series 5.0 Steel, 54.6cm (21.5''), Projected Capacitive, 1920x1080, Wi-Fi, Ethernet, BT 5.2, Android 14, GMS
E176840
Select model
Key features:
- Durable stainless steel construction
- High IP ratings (IP65 Front, IP54 Back) for maximum protection
- Seamless remote management with EloView
- Multiple size options: 10", 15", and 22" displays
- Integrated power-over-ethernet functionality
- Enterprise-grade support with continuous security updates
Specifications:
- Diagonal Size: 15.6" / 396.24 mm
- Operating System: Android 14
- Processor: Qualcomm QCS6490
- Memory: 8GB
- Storage: 64GB
- Ports:
- 1x USB-A 3.0
- 1x USB-C output
- 1x RJ45 Ethernet LAN (Gigabit)
- 1x DC input
- Wireless: Wi-Fi 802.11 a/b/g/n/ac/ax + Bluetooth 5.2
- Webcam: 8MP, 30fps, Auto Focus
- Audio: 2x 1.5W speakers, 2x built-in Digital Microphones
- Operating Temperature: 32°F to 113°F / 0°C to 45°C
- Humidity: 20%-80% operating
- Warranty: 2 years standard
Main Features
-
Touch: Yes
-
Connection: USB
| Technical Information | |
|---|---|
| Screen Size Class | 22" |
| Viewable Screen Size | 21.5" |
| Screen Mode | Full HD |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 14 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type |
|
| Features | Landscape/Portrait Viewable |
| Ingress Protection (IP) Rating |
|
| Active Display Area (H x V) | 18.70" x 10.50" |
| Video | |
|---|---|
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 215 Nit |
| Maximum Refresh Rate | 60 Hz |
| Audio | |
|---|---|
| Speakers | Yes |
| Number of Speakers | 2 |
| Touchscreen Information | |
|---|---|
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Network & Communication | |
|---|---|
| Connectivity Technology | Wireless |
| Interfaces/Ports | |
|---|---|
| USB | Yes |
| USB Type-C | Yes |
| Number of USB Ports | 2 |
| Total Number of USB Type-C Ports | 1 |
| Built-in Devices | |
|---|---|
| Webcam | Yes |
| Microphone | Yes |
| Software | |
|---|---|
| Operating System Installed | Android 14 |
| Environmental Conditions | |
|---|---|
| Operating Temperature Range | 32°F (0°C) to 113°F (45°C) |
| Operating Humidity Range | 20% to 80% (Non-condensing) |
| Power Description | |
|---|---|
| Input Voltage Range | 120V to 230V |
| Frequency |
|
| Physical Characteristics | |
|---|---|
| VESA Mount Compatible | Yes |
| VESA Mount Standard |
|
| Color Family | Gray |
| Product Color | Stainless Steel |
| Height | 12.8" |
| Width | 21" |
| Depth | 1.5" |
| Weight (Approximate) | 11.44 lb |
