Datalogic

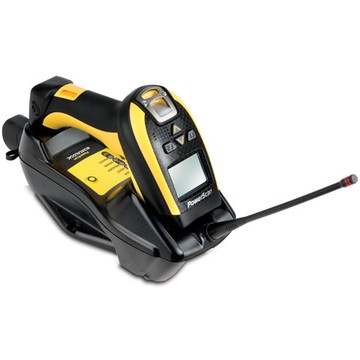

Datalogic PowerScan PM9501, 2D, HP, multi-IF, disp., kit (USB), RB

SKU:

PM9501-DHP433RBK10

Handheld Imager - Datalogic PowerScan PM9501 USB Kit - 433 MHz - High Performance/Liquid Lens - Display/4-Key Keypad - Removable Battery (Kit includes Scanner - Base Station (Part# BC9030-433) - Cable (Part# CAB-438) - Power Brick (Part# 8-0935) and Power Cord (Part# 6003-0940).)
Description
ico-plus ico-minus

The DataLogic PowerScan PM9500 Barcode Scanner is engineered for seamless performance in any environment, boasting omnidirectional reading capabilities that handle various barcode formats. With superior optical characteristics, it enables quick scanning from contact up to 3.3 ft. Built on Datalogic's latest decoding technology, this device ensures reliable and swift reading, enhancing productivity. It's designed for user comfort with an ergonomic shape and soft white illumination, making it suitable for intensive scanning tasks.


Key Features:

  • High-performance Liquid Lens for reading standard, wide, and high-density codes.
  • Intuitive aiming system for easy scanning.
  • Soft white light illumination minimizes eye strain.
  • Multiple display options: 4 configurable keys or a 16-key keyboard.
  • High-speed cordless communications at 433 MHz and 910 MHz.
  • IP65 rating for water and dust resistance.

Specifications:

  • Dimensions: PM9500: 21.2 x 11.0 x 7.4 cm; Weight: 400 g
  • Battery: Lithium-Ion 3350 mAh; Charge Time: 4.5 hours (External)
  • Radio Range: 433 MHz: up to 200 m; 910 MHz: up to 270 m (low speed)
  • Environmental Compliance: IP65; Operating Temperature: -20°C to 50°C
  • Drop Resistance: Withstands 50 drops from 1.2 m onto concrete
  • Warranty: 3-Year Factory Warranty

Main Features

  • Case color: Black

  • Connectivity: Cordless

  • Connection: Serial, USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D Codes:
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
Postal Codes:
  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Portuguese Post
  • Postnet
  • Royal Mail Code (RM4SCC)
  • Swedish Post
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type Imager
Number of Keys 4
Interfaces/Ports
Host Interface
  • Serial
  • USB
  • Keyboard Wedge
Physical Characteristics
Form Factor Handheld
Product Color
  • Yellow
  • Black
Weight (Approximate) 15.52 oz
Documents
ico-plus ico-minus
Product document pm9501.pdf PM9501-DHP433RBK10 Product document pm9501.pdf MOD-PM9500
