Datalogic

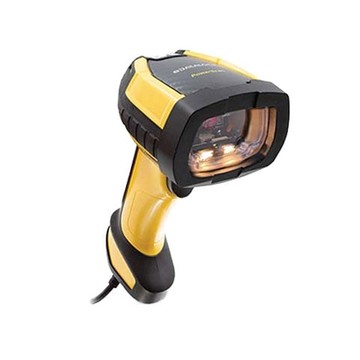

Datalogic PD9630-ARK2 Handheld scanner Auto Range, Digimarc, IP65, IP67, RS232, USB

SKU:

PD9630-ARK2

Datalogic PowerScan PD9630 — Datalogic PowerScan ARK2 Industrial 2D Scanner. An industrial-grade PD9630-series 2D scanner built for harsh environments and continuous use in demanding workflows. Key attributes: - scanner_type - interfaces - ingress_protection_rating - cordless - bluetooth - supported_code_types - imager_type - scan_range - depth_of_field_(contact_to) - features - reading_mode - form_factor - warranty - color_imaging - rfid - data_capture - pos
Description
ico-plus ico-minus

The Datalogic PowerScan PD9630 Barcode Scanner is engineered for industrial environments, promising unmatched durability and efficiency. Its ultra-rugged design and ergonomic shape minimize operator fatigue, while advanced wireless charging technology ensures reliable performance without connection wear. With the choice of three optic options, this versatile scanner excels at reading 1D and 2D barcodes, making it ideal for manufacturing and logistics operations. Whether you opt for its cordless models featuring Bluetooth 5.0 or the Datalogic STAR Cordless System™, the PD9630 enhances mobility, leading to increased productivity on your shop floor.


Key Features
  • Ultra-rugged construction for harsh environments
  • Comfortable ergonomic design to reduce operator fatigue
  • Wireless charging system for dependable performance
  • Multiple optic options for versatile barcode reading
  • Bluetooth 5.0 and STAR Cordless System™ for seamless connectivity
  • Modular cradle design for interface customization

Specifications
  • Wireless Communication: Datalogic STAR Cordless System, Bluetooth 5.0
  • Reading Capabilities: 1D/2D codes, postal codes, stacked codes
  • Environmental Sealing: IP65 and IP67
  • Drop Resistance: Withstands 50 drops from 2.5 m / 8.2 ft
  • Battery: Lithium-Ion, 3350 mAh, 95% full charge in 2.5 hours
  • Weight: PD9630 - 318 g / 11.2 oz; PBT9600 - 415 g / 14.6 oz
  • Dimensions: 19.0 x 14.0 x 7.9 cm
  • Warranty: 3-Year Factory Warranty

Main Features

  • Rugged: Industrial

  • IP Rating: IP67

  • Range: FlexRange

  • Connectivity: Corded

  • Connection: RS232, USB

  • Scanner Capability: 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger
Scanner Range Auto Range
Scanning Distance 65.58 ft
Features Vibration
Cable Type Included Serial
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Minimum Print Contrast 20%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 100 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color Red
Interfaces/Ports
Host Interface
  • Serial
  • USB
Power Description
Input Current 770 mA
Standby Current 140 mA
Battery Information
Battery Included Yes
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3350 mAh
Maximum Battery Recharge Time 3.20 Hour
Environmental Conditions
Operating Temperature -22°F (-30°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Height 7.8"
Width 3.1"
Length 5.5"
Weight (Approximate) 11.29 oz
Miscellaneous
Ingress Protection (IP) Rating
  • IP65
  • IP67
Application/Usage
  • Warehouse
  • Logistics
  • Manufacturing
  • Inventory
Documents
ico-plus ico-minus
Product document pd9630-2022.pdf PD9630-ARK2 Product document powerscan9600.pdf MOD-PD9630
