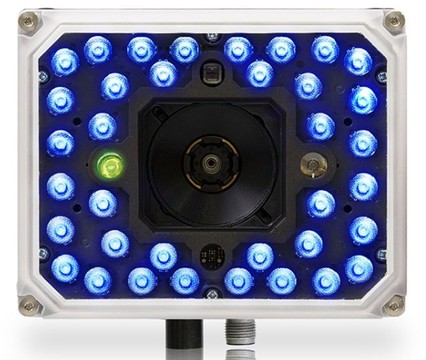

Datalogic Matrix 320 Stationary Barcode Scanner 2MP, Extra Large Field of View, Smart Configurable Lighting, Compact, Modular, Rotating Connectors

The Datalogic Matrix 320 FlexiScan is a compact, industrial-grade stationary 2D area imager engineered for fixed-position barcode capture in manufacturing, intralogistics, distribution and inspection stations. Combining a 2 MP image sensor with a 1920×1080 resolution, configurable multi-color lighting and electronic liquid-lens focus, this corded scanner addresses traceability, direct part mark (DPM) and high-resolution label reading where repeatable, hands-free performance is required. Flexible industrial connectivity including Gigabit Ethernet and serial protocols, IP65/IP67 ingress protection and a broad operating range simplify integration into conveyors, workstations and automated lines. The result is a durable, easy-to-deploy reader that delivers reliable throughput and consistent read rates for B2B and automated environments.

Key Features

• Industrial-grade protection: IP65/IP67 enclosure ratings provide resilience against dust and water exposure for shop-floor and warehouse deployments.
• High-resolution imaging: 2 MP sensor with 1920×1080 capture supports accurate reading of 1D, 2D and DPM codes for traceability tasks.
• Liquid-lens electronic focus: Electronic focus adjustment with a 16 mm liquid lens simplifies setup and maintains consistent reads across variable distances.
• Flexible industrial connectivity: Multi-protocol support including Ethernet/IP, FTP, Modbus TCP, OPC UA, Profinet IO, TCP/IP, UDP and serial interfaces eases integration into automation systems.
• Configurable illumination: Blue LED primary lighting with three configurable color options and 14 LEDs provides visual guidance and improves decode reliability on challenging surfaces.
• Wide operating range: A 70–1500 mm operating range and extra-large field of view enable versatile fixed-mount placements and broad coverage of passing items.

Specifications

• Brand: Datalogic
• Product Name: Matrix 320 FlexiScan
• Device Type: 2D Area Imager / Stationary barcode scanner
• Sensor Resolution (Megapixels): 2 MP
• Image Resolution: 1920×1080 px
• Sensor Type / Imager: Image-based
• Form Factor: Stationary / Presentation (compact)
• Field of View: Extra large
• Lens Type: Liquid Lens, S-Mount
• Lens Focal Length: 16 mm
• Focus Control: Electronic focus (liquid lens), 16 mm adjustment
• Operating Range: 70-1500 mm
• Readable Symbologies: 1D, 2D, DPM
• Lighting: Blue LED, configurable three-color options
• Number of LEDs: 14
• Scan Angle: 45°
• Connectivity / Interfaces: Ethernet IP, FTP, Modbus TCP, OPC UA, Profinet IO, Serial, TCP/IP, UDP
• Enclosure Rating: IP65, IP67
• Supply Voltage: 10-30 V
• Operating Temperature Range: -10 to 50 °C
• Weight: 0.84–1 lbs (variant dependent)
• Includes: Scanner only (no cable)
