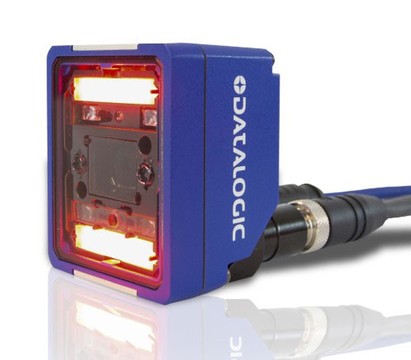

Datalogic Matrix 220 352-010, Standard White Light, 7mm electronic focus, Standard 10-30 VDC, Standard

The DataLogic Matrix 220 Fixed Barcode Scanner is a cutting-edge imaging solution designed for maximum performance and versatility across various industries. With its compact design and advanced features, this scanner excels in electronics, automotive, packaging, and document handling applications. Equipped with a high-resolution 1.2 MP sensor and innovative lighting systems, it effortlessly reads Direct Part Marking (DPM) codes, enhancing productivity while ensuring reliability even in challenging environments.

• Ultra-compact dimensions for easy integration in tight spaces
• Multicore image processing for high-speed and superior code readability
• Integrated flexible illumination with polarized and diffused light options
• Supports OPC UA protocol for Industry 4.0 communication
• High Dynamic Range (HDR) technology for improved image quality
• IP65/IP67 rating for durability in harsh industrial environments

• Dimensions: 78mm x 47mm x 38mm (Connector at 0°)
• Weight: 173 g (6.1 oz)
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Protection Class: IP65 and IP67
• Sensor Resolution: 1280 x 960 (1.2 megapixel)
• Frame Rate: 45 frames/s
• Connectivity: Ethernet 10/100 Mbit/s, PoE models available
