Datalogic

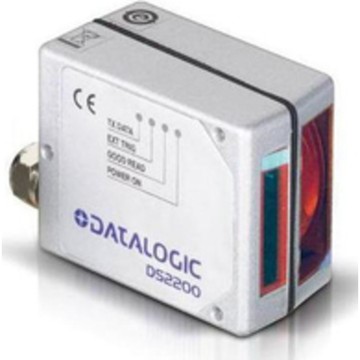

DS2200-1110 ST RES R1 RS485 RS232 5 V

SKU:

930161030

Configured as an RS485/RS232 serial interface unit operating at 5 V, the Datalogic 930161030 is a fixed-mount laser barcode scanner built around an IP65-rated housing compact enough for OEM integration into automatic machinery. At 500 scan/s with a scanning distance of 8.66 in, it delivers sustained read performance without external lighting dependencies. The housing measures 2 in wide, 1.6 in deep and 1.1 in tall, keeping the 5.29 oz scanner unobtrusive in space-constrained installations. Cable connectivity routes through a serial host interface, and the laser light source maintains read reliability across varied ambient lighting conditions. The DS2200 series targets OEM, industrial automation and applications where compact dimensions, light weight and ease of integration are primary requirements.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic DS2100N is a compact, fixed-mount laser bar code reader designed for automation engineers and systems integrators who need reliable close-range 1D scanning in demanding industrial environments. Built for automatic warehouses, factory automation, automatic picking systems, process control, packaging lines, and print-and-apply applications, it delivers a scan rate of up to 1000 scan/s with a maximum resolution of 5 mil and a reading distance of 50–300 mm (1.97–11.81 in). Its ACR Advanced Code Reconstruction technology ensures consistent reads on low-quality or damaged labels, while multi-interface connectivity — including RS232/RS422/RS485, auxiliary RS232, ID-NET, EtherNet/IP, and PROFINET with an embedded two-port Ethernet switch — simplifies integration into existing automated lines. An IP65-rated aluminum housing and an operating temperature range of 0°–45°C (32–113°F) make it well suited to the rigors of industrial shop-floor use.
Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document mod-ds2100n-datalogic-readers-datasheet.pdf 930161030  (PDF) Product document mod-ds2100n-datalogic-readers-user-manual.pdf 930161030  (PDF)
FAQs
ico-plus ico-minus
What industrial communication protocols does the Datalogic DS2100N support?
The DS2100N offers embedded Ethernet connectivity including EtherNet/IP, PROFINET, and Ethernet TCP/IP, along with serial interfaces (main port RS232/RS422/RS485, auxiliary port RS232) and ID-NET RS485 multidrop. The PROFINET-equipped models include an embedded internal switch with two PROFINET ports, enabling line topology network configurations.
What barcode symbologies can the Datalogic DS2100N read?
It reads Code I2of5, Code 39, Code 93, Code 128, EAN/UPC, EAN128, Codabar, Pharmacode, Plessey, and ISBT128, all 1D symbologies decoded via the laser scan engine.
What is the reading distance and scan rate of the Datalogic DS2100N?
The DS2100N reads from 50 mm to 300 mm (1.97 to 11.81 in) and operates at a scan rate of 500 to 1000 scans/s, with a maximum resolution of up to 0.12 mm (5 mils).
Is the Datalogic DS2100N rated for harsh industrial environments?
Yes, it carries an IP65 protection rating and an aluminum case, with an operating temperature range of 0° to 45 °C (32 to 113 °F) and a power supply range of 10–30 VDC at 4 W average consumption.
What sectors and applications is the Datalogic DS2100N designed for?
It is designed for automatic warehouses, factory automation, automatic picking systems, process control and packaging, and print and apply systems, making it suitable for demanding close-range industrial identification tasks.
What optional accessories are available for the Datalogic DS2100N?
Listed accessories include the OM2000N Oscillating Mirror, GFC-200 85° Contact Reading Mirror, GFC-2100 2KN 90° Lateral Output Window, and GFC-2020 102° Lateral Output Mirror, which expand reading geometry options for different installation configurations.
