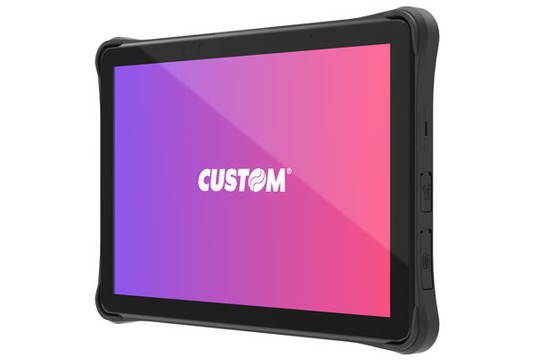

CUSTOM AMERICA, T-RANGER, 10.1 DISPLAY TABLET, WWAN, WIFI, BT, NFC, NO SCANNER, 4GB/64GB, ANDROID 11 GMS, IP65, 10000 MAH BATT
93DHN015900L33
Select model
Key features:
- Incredible connectivity: Equipped with Bluetooth®, Wi-Fi®, NFC, HDMI, and dual USB ports.
- Integrated 2D barcode scanner: Makes data capture seamless and efficient.
- Slim & rugged design: Crack-resistant screen with integrated bumpers for maximum protection.
- Customized accessories: Expandable options tailored for various business applications.
- All day battery: Hot-swappable battery for extended use without downtime.
Specifications:
- CPU: MediaTek MT8788 Octa-core 2.0 GHz
- RAM: 4 GB
- Storage: 64 GB
- OS: Android™ 11 with GMS
- Display: 10.1" 1920x1200P FHD Multi-Touch IPS with Gorilla Glass
- Brightness: 400 cd/m²
- Barcode scanner: Built-in 1D/2D barcode scanner
- Camera: 13MP Rear with Flash, 8MP Front Facing
- Wireless: WLAN 2.4G, 5G; BT 5.0; WWAN worldwide
- Drop Resistance: 1.2 m
- Degree of protection: IP65
- Dimensions: 246.1 mm x 164.2 mm x 14.9 mm
- Weight: 900 g
Main Features
-
Operation System: Android
-
Rugged: Industrial
-
Connection: Bluetooth
| Processor | |
|---|---|
| Combined Processor Core | Octa-core |
| Processor Type | Cortex A73 |
| Processor Speed | 2 GHz |
| Processor Core | Quad-core (4 Core) |
| 2nd Processor Type | Cortex A53 |
| 2nd Processor Speed | 2 GHz |
| 2nd Processor Core | Quad-core (4 Core) |
| Chipset | |
|---|---|
| Chipset Manufacturer | MediaTek |
| Chipset Model | MT8788 |
| Memory | |
|---|---|
| Standard Memory | 4 GB |
| Memory Technology | LPDDR4 |
| Memory Card Supported | microSD |
| Storage | |
|---|---|
| Flash Memory Capacity | 64 GB |
| Display & Graphics | |
|---|---|
| Screen Size | 10.1" |
| Display Screen Technology | In-plane Switching (IPS) Technology |
| Screen Mode | Full HD |
| Screen Resolution | 1920 x 1200 |
| Graphics Controller Model | Mali-G72 MP3 |
| Graphics Memory Technology | LPDDR4 |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
|---|---|
| WWAN Supported | Yes |
| SIM Size Supported | Nano |
| Cellular Phone Capability | Yes |
| Cellular Network Supported |
|
| Cellular Generation | 4G |
| Cellular Data Connectivity Technology |
|
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| Bluetooth | Yes |
| Near Field Communication | Yes |
| Interfaces/Ports | |
|---|---|
| USB Type-C | Yes |
| USB Type-C Detail | USB type C |
| Built-in Devices | |
|---|---|
| Front Camera | Yes |
| Front Camera Resolution | 8 Megapixel |
| Rear Camera | Yes |
| Rear Camera Resolution | 13 Megapixel |
| Operating System | |
|---|---|
| Operating System Platform | Android |
| Operating System | Android 11 |
| Battery Information | |
|---|---|
| Number of Batteries Supported | 2 |
| Battery Capacity | 10000 mAh |
| Battery Weight | 6.33 oz |
| Power Description | |
|---|---|
| Power Source |
|
| Physical Characteristics | |
|---|---|
| Rugged | Yes |
| Form Factor | Slate |
| Height | 0.6" |
| Width | 6.5" |
| Depth | 9.7" |
| Weight (Approximate) | 1.98 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Features |
|
| Country of Origin | Taiwan |
| Warranty | |
|---|---|
| Limited Warranty | 1 Year |
