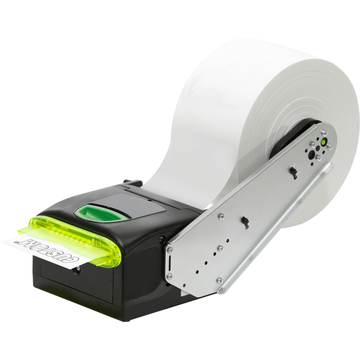

Custom VKP80III Kiosk receipt printer Direct thermal, 50 - 82.5mm, USB/RS232, Hot Swap, Cutter, Automatic ticket presenter

The Custom VKP80III Kiosk Receipt Printer is a compact, direct‑thermal kiosk printer engineered for unattended and point‑of‑sale applications where reliability, integration flexibility and compact footprint are essential. Designed for self‑service kiosks, ticketing and parking machines, vending and retail or hospitality kiosks, it delivers sharp monochrome receipts and tickets with 203 dpi resolution and high throughput. Multiple interface options, robust paper handling for 50–82.5 mm media, anti‑jam and automatic ticket presentation features, plus service‑friendly functions such as hot‑swap capability and configurable connector locations, reduce downtime and simplify installation and maintenance in high‑traffic commercial environments.

Key Features

• Compact kiosk design: Small footprint and lightweight construction enable neat integration into self‑service enclosures and point‑of‑sale cabinets.
• High‑quality thermal output: 203 dpi direct thermal printing with up to >250 mm/s peak speeds (variant dependent) for clear, fast receipt and ticket production.
• Flexible connectivity: USB, RS‑232 and Ethernet interfaces (depending on variant) support easy integration with kiosk controllers and POS systems.
• Robust media handling: Supports paper widths from 50 to 82.5 mm, a wide paper weight range and large roll diameters for longer unattended operation.
• Service and uptime oriented: Features such as anti‑jamming systems, automatic ticket presentation, retracting function and hot‑swap capability minimize service disruptions.
• Durability and longevity: Engineered for continuous use with long print head life, high cutter MCBF and a proven MTBF for electronic components.

Specifications

• Brand: Custom
• Product Reference: Custom VKP80III Kiosk Receipt Printer
• Printing Method: Direct Thermal / Thermal with fixed head
• Print Resolution: 203 dpi
• Print Speed: Up to >250 mm/s (variant dependent)
• Paper Width Range: 50 – 82.5 mm
• Maximum Roll Diameter: 150–180 mm (variant dependent; up to 250 mm with optional holder)
• Interfaces / Connectivity: RS232, USB 2.0 (full speed), Ethernet (available on some versions)
• Emulation / Command Set: CUSTOM / POS
• Data Buffer: 16 KB text / 1 MB graphics
• Flash Memory: 5 MB total (1 MB user available on some variants)
• Print Head Life: 100–200 km (variant dependent)
• Cutter Life / MCBF: ≥1,000,000 cuts
• MTBF (electronic board): 450,000 hours
• Paper Weight Range: 55–110 g/m² (60–110 g/m² on some variants)
• Power Supply: 24 Vdc ±10% (or AC power supply on some variants)
• Typical Current Consumption: 1 A
• Operating Temperature Range: −20 to 70 °C (some variants specify 0–50 °C)
• Dimensions (examples): 116 x 143 x 76 mm or 143.5 x 76.4 x 116 mm (variant dependent)
• Weight: ~0.8–1.2 kg (variant dependent)
• Character Sets: PC437, PC850, PC860, PC863, PC865, PC858
• Number of Dots: 8 dots/mm
• Sensors: Paper end / ticket presence, paper output, open cover, near paper end (external roll), print head temperature, VeriNotch / movable black mark
• Features: Anti‑jamming system, automatic ticket presenter, retracting function, hot‑swap capability, optional sensors and multiple roll holder mount positions
