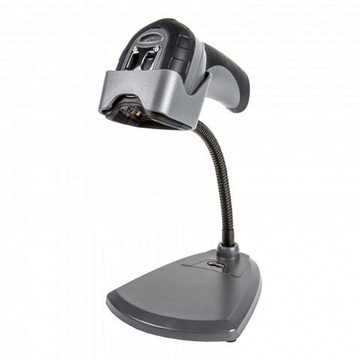

Code Barcode Scanner CR6000, industrial, handheld, rugged 2D/DPM area imager, dark gray. Includes: 6 ft straight USB cable, stand.
CR6022-PKU
Select model
The Code Reader 6000 (CR6000) Barcode Scanner is your ultimate solution for advanced barcode reading. Engineered for industrial environments, it captures a wide array of barcodes—including etched, embossed, and low-contrast formats—with impressive accuracy. Its compact design and ergonomic features ensure operator comfort, while the robust IP54 housing protects against dust and debris. With versatile functionalities, the CR6000 operated hands-free or handheld, making it the ideal tool for high-traffic manufacturing settings and optimal for tracking components on assembly lines.
Key Features
- Reads etched and dot peen markings
- Compatible with low-contrast barcodes
- IP54 housing for dust protection
- User feedback through LED, audible tone, and vibration
- Operates in handheld or hands-free mode
- Compatible with Code's CortexTools™ software
- Optional stand for added convenience
Specifications
- Dimensions: 5.95" H x 3.67" L x 2.08" W (151 mm H x 93 mm L x 53 mm W)
- Weight: 4.6 oz. (130 g)
- Operating Temperature: -20° to 55°C / -4° to 131°F
- IP Rating: 54
- Decode Capability: 1D, 2D, DPM, PDF, Postal
- Communication Interfaces: RS232, USB 2.0, Bluetooth
- Warranty: 5 years
Main Features
-
Rugged: Industrial
-
Connectivity: Corded
-
Connection: USB
-
Scanner Capability: 2D
| Technical Information | |
|---|---|
| Connectivity Technology | Cable |
| Image Sensor Type | CMOS |
| Cable Type Included | USB |
| Stand Included | Yes |
| Interfaces/Ports | |
|---|---|
| Host Interface | USB |
| Physical Characteristics | |
|---|---|
| Form Factor | Handheld |
| Color Family | Gray |
| Product Color | Dark Gray |
| Height | 5.9" |
| Width | 2.1" |
| Length | 3.7" |
| Weight (Approximate) | 4.59 oz |
cr6000.pdf CR6022-PKU
cr6000.pdf MOD-CODE-CR6000-SCANNERS
