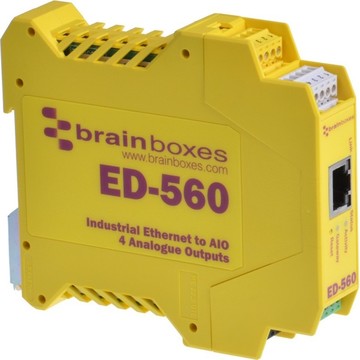

Brainboxes ED-560 Wireless & Networking

• Ethernet to 4 Analogue Outputs + RS485 Gateway
• Installation CD Including Manual, Microsoft Signed Drivers & Utilities
• Quick Start Guide

IO Channels

• IO Protocols Modbus TCP or DCON ASCII (over TCP or Virtual COM port)
• Description 4 Analogue Outputs
• Digital Inputs 0
• Digital Outputs 0
• Analog Inputs 0
• Analog Outputs 4
• Watchdog When device comms is lost, outputs can be set to predetermined state
• Power On Values Outputs can be set to predetermined values on power on

Analog IO

• Output Voltage Ranges 0-10V
• Output Current Ranges 0-20mA or 4-20mA
• Output Current Type Sink (requires external current source)
• Output Measurement Resolution 12 Bit
• Max Output Load Current (voltage mode) ±5mA
• Max Output Load Voltage (current mode) 30V
• Output Accuracy 0.1% of FSR @ 25°C / 77 °F
• Output Voltage Drift (Voltage Mode) Zero drift less than 30µV/°C, span drift less than 25ppm/°C
• Output Current Drift (Current Mode) Zero drift less than 0.2µA/°C, span drift less than 25ppm/°C
• Output Slew Rate Voltage Mode: 170 kV/s, Current Mode: 4.3A/s
• Output Settling Time Voltage Mode: 350µs, Current Mode: 4 µs

Serial Port

• Serial Gateway RS485 NuDam/ADAM compatible expansion port

Network

• Number of Ports 1
• Network Port Type RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX)
• Network Protocols ICMP, IP, TCP, DHCP, HTTP
• Protection 1500V Magnetic Isolation between ports and network

Power

• Power Input 5V - 30V DC Redundant DC Dual Power Inputs, reverse polarity protected
• Power Supply 1 Description Global Power Supply - PW-600
• Power Supply 2 Description Power supply PW-650
• Max Input 35 Volts
• Power Consumption 2.5 Watt Max

General

• Operating Temperature Range -30 °C to +80 °C / -22 °F to +176 °F
• Industrial Standard Yes
• Storage Temperature -40 °C to +85 °C / -40 °F to +185 °F
• Ambient Relative Humidity 5-95% (Non-condensing)
• Power Consumption Input +5V to +30V DC 100mA@24V 2.5W max

Operating Systems

• Microsoft Windows 10
• Suitable for any device with a Web Browser
• Microsoft Windows 8 32 bit & 64 bit Editions
• Windows Server 2012
• Raspberry Pi
• Android
• Windows Server 2008 R2
• Microsoft Windows 7 32 bit & 64 bit Editions
• iOS
• Windows Server 2008 32 bit & 64 bit Editions
• Windows Vista 32 bit & 64 bit Editions
• Mac OS X
• Windows XP 32 bit & 64 bit Editions
• Microsoft Windows 2000
• Linux

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
