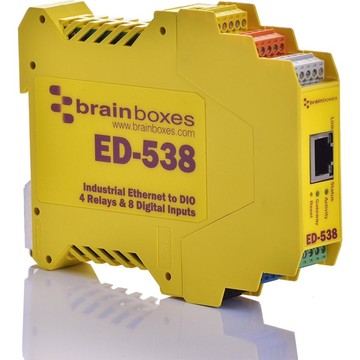

Brainboxes ED-538 Wireless & Networking

• Ethernet to 4 Relays and 8 Digital Inputs + RS485 Gateway
• Installation CD Including Manual, Microsoft Signed Drivers & Utilities
• Quick Start Guide

IO Channels

• IO Protocols: Modbus TCP or DCON ASCII (over TCP or Virtual COM port)
• Description: 8 Digital Inputs and 4 Relays
• Digital Inputs: 8
• Digital Outputs: 4 Relays
• Analog Inputs: 0
• Analog Outputs: 0
• Watchdog: When device comms is lost, outputs can be set to predetermined state
• Power On Values: Outputs can be set to predetermined values on power on
• Safe Values: When Input triggered, outputs can be automatically set to predetermined value

Digital IO

• Input Logic Level 0: -30.0V to +1.0V
• Input Logic Level 1: +2.0V to +30V
• Input Latches: Triggered by user programmable positive or negative edges, stays true until acknowledged
• Input Counter: User progammable- counts positive or negative transitions up to 200Hz
• Digital Output Type: Form A Relay (SPST: Single Pole Single Throw) - Normally Open
• Maximum Output Load Voltage: 60 VDC
• Maximum Output Current Sink: 5.0A per channel

Serial Port

• Serial Gateway: RS485 NuDam/ADAM compatible expansion port

Network

• Number of Ports: 1
• Network Port Type:RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX)
• Network Protocols: ICMP, IP, TCP, DHCP, HTTP
• Protection: 1500V Magnetic Isolation between ports and network

Power

• Power Input: 5V - 30V DC Redundant DC Dual Power Inputs, reverse polarity protected
• Power Supply 1 Description: Global Power Supply - PW-600
• Power Supply 2 Description: Power supply PW-650
• Max Input: 35 Volts

General

• Operating Temperature Range: 0 °C to +80 °C / 32 °F to +176 °F
• Industrial Standard: Yes
• Storage Temperature: -40 °C to +85 °C / -40 °F to +185 °F
• Galvanic Isolation: No
• Power Consumption: Input +5V to +30V DC 100mA@24V 2.5W max

Operating System Compatibility

• Microsoft Windows 10
• Suitable for any device with a Web Browser
• Microsoft Windows 8 32 bit & 64 bit Editions
• Windows Server 2012
• Android
• Windows Server 2008 R2
• Microsoft Windows 7 32 bit & 64 bit Editions
• iOS
• Windows Server 2008 32 bit & 64 bit Editions
• Windows Vista 32 bit & 64 bit Editions
• Mac OS X
• Windows XP 32 bit & 64 bit Editions
• Microsoft Windows 2000
• Linux

Certifications

• EMC: CE

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
