Bixolon

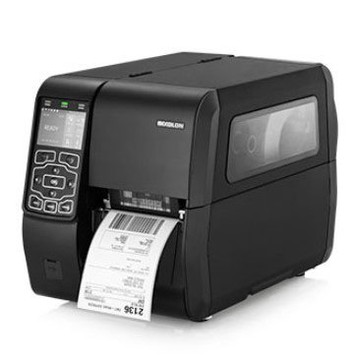

Bixolon XT5-40SP Barcode Label Printer 203 dpi, Thermal Transfer, 14 in/s, 3.5" LCD, USB/Ethernet/Serial, Real Time Clock, Peeler

SKU:

XT5-40SP

Bixolon Xt5-40 Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - 13.12 ft Print Length - 4.09" Print Width - 14 in/s Mono - 203 dpi - Label, Reflective, Gap, Black Mark, Notch, Continuous Label, Fanfold - 4.49" Label Width
Description
ico-plus ico-minus
The Bixolon XT5-40 Barcode Label Printer is engineered for industrial use, offering premium performance and versatility in various applications, including warehouse, logistics, and retail. With a robust aluminum body and an anti-adhesive metal case, it ensures durability in demanding environments. This 4-inch thermal transfer printer boasts impressive print speeds of up to 14 inches per second and multiple resolution options, catering to the diverse needs of your business. The user-friendly design, including a 3.5-inch color TFT LCD and easy media loading, elevates operational efficiency while maintaining high print quality.
Key Features:
  • High Speed: Prints up to 14 ips (356 mm/sec).
  • Multiple Resolution Options: Choose from 203, 300, or 600 dpi.
  • Smart Connections: Simple Wi-Fi settings and fast Ethernet (1Gbit/sec).
  • Easy Maintenance: Toolless maintenance and adjustable printer head pressure.
  • Variety of Options: Auto cutter, peeler, rewinder, and more.

Specifications:
  • Print Method: Thermal Transfer, Direct Thermal
  • Print Speed: Up to 14 ips (XT5-40)
  • Print Resolution: 203 dpi, 300 dpi, 600 dpi options
  • Print Width: 104mm (XT5-40)
  • Media Types: Gap, Black Mark, Continuous, Fan-Fold
  • Dimensions: 269 x 490 x 324 mm
  • Weight: 13.98 kg
  • Power: EnergyStar Certified, 100-120V / 200-240V AC
  • Connectivity: USB, Ethernet, optional Bluetooth & WLAN
  • Operating Temperature: 5~40°C
  • Storage Temperature: -20~60°C

Main Features

  • Equipment Format: Industrial

  • Rugged: Industrial

  • Connection: Serial, USB, Ethernet

  • Real Time Clock: Yes

  • Optional Upgrades: Cutter, Peeler, Rewinder

  • Printing Technology: Thermal Transfer

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 14 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 13.12 ft
Maximum Print Width 4.09"
Application/Usage Industrial
Print Technology Thermal Transfer
Memory
Standard Memory 512 MB
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Cutter
Cutter Life 1000000 Cuts
Media Types & Handling
Media Type
  • Label
  • Reflective
  • Gap
  • Black Mark
  • Notch
  • Continuous Label
  • Fanfold
Maximum Roll Diameter 7.99"
Maximum Label Width 4.49"
Power Description
Power Source AC Supply
Physical Characteristics
Height 12.8"
Width 10.6"
Depth 19.3"
Weight (Approximate) 30.82 lb
Miscellaneous
Platform Supported
  • PC
  • Android
  • iOS
Energy Star Yes
Documents
ico-plus ico-minus
Product document xt5-40.pdf XT5-40SP Product document xt5-40.pdf MOD-XT5-40
