Bixolon

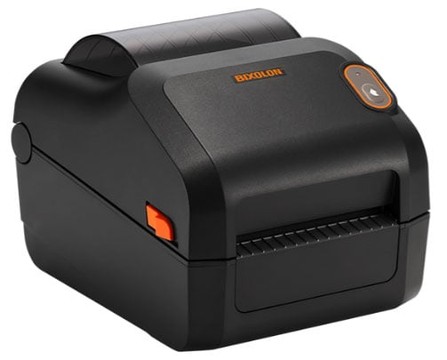

Bixolon XD3-40D Label Printer, Direct Thermal, 203 dpi, Peeler, USB, RS232, Ethernet, Black

SKU:

XD3-40DDEK

Bixolon XD3-40D Label Printer family—compact, reliable label printing solutions from Bixolon designed for versatile labeling applications. This model lineup supports a range of optional modules and media types to adapt to retail, logistics, healthcare, and general office environments. Built for easy integration, these variants offer flexible connectivity and configurable accessory options to streamline label handling and post-print processing. Attributes: - peeler - cutter - rewinder - linerless - rfid
Description
ico-plus ico-minus
The Bixolon XD5-40 Barcode Label Printer is a robust and versatile solution designed for various industries, including manufacturing, logistics, retail, and healthcare. With its compact clamshell design, it supports both Direct Thermal and Thermal Transfer printing methods and offers exceptional print speeds of up to 7 inches per second. The printer caters to diverse labeling needs with options for high-resolution output and RFID capabilities, ensuring reliability and performance for your business operations.
Key features:
  • Fast printing speeds: Up to 7 ips (XD5-40d) and 6 ips (XD5-40t)
  • High resolution: Optional 300 dpi for fine print quality
  • Connectivity options: Dual-band WLAN and Bluetooth V5.0
  • Enhanced memory: Up to 256MB SDRAM and 256MB Flash
  • Field-installable features: Peeler and Auto Cutter

Specifications:
  • Print Method: Direct Thermal (XD5-40d), Thermal Transfer (XD5-40t)
  • Print Speed: Up to 7 ips (XD5-40d), 6 ips (XD5-40t)
  • Print Resolution: 203 dpi (XD5-40d, XD5-40t) | 300 dpi (XD5-43d, XD5-43t)
  • Media Width: 15 ~ 118 mm
  • Memory: Standard: 64MB SDRAM, 128MB Flash | Optional: 256MB SDRAM, 256MB Flash
  • Operating Temperature: 0 ~ 40°C (XD5-40d), 5 ~ 40°C (XD5-40t)
  • Dimensions: XD5-40d: 194x248x169 mm | XD5-40t: 210x284x188 mm
  • Weight: XD5-40d: 1.89 kg | XD5-40t: 2.48 kg

Main Features

  • Equipment Format: Desktop

  • Rugged: Commercial

  • Print Speed: 5 in/s

  • DPI: 203 dpi

  • Case color: Black

  • Connection: Ethernet, RS232, Serial, USB

  • Optional Upgrades: Peeler

  • Max Width: 5 mm

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 5 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 39.37"
Maximum Print Width 4.09"
Barcode Symbology Supported
  • 1D
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar (RSS-14)
  • Standard 2 of 5
  • UPC-EAN Extensions
  • UPC-A
  • UPC-E
  • IMB
  • 2D
  • AZTEC
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • QR Code
  • TLC 39
Peel Facility Yes
Application/Usage
  • Desktop
  • Manufacturing
  • Retail
  • Warehouse
  • Logistic
Features Compact
Connectivity Technology Wired
Print Technology Direct Thermal
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Ethernet
Media Types & Handling
Media Type
  • Gap
  • Black Mark
  • Notch
  • Continuous Label
  • Fanfold
Media Sensor
  • Black Mark Sensor
  • Gap Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Head Open Sensor
Media Thickness 7.87 mil
Maximum Roll Diameter 5"
Maximum Label Width 4.65"
Fonts & Emulation
Language Emulation
  • EPL
  • ZPL II
  • SLCS
  • BPL-Z
  • BPL-E
Power Description
Power Source Power Adapter
Environmental Conditions
Operating Temperature 32°F (0°C) - 104°F (40°C)
Operating Relative Humidity 10% - 80%
Storage Temperature -4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Color Family Black
Product Color Black
Height 6.6"
Width 7.1"
Depth 8.7"
Weight (Approximate) 3.75 lb
Miscellaneous
Cables Included USB
Platform Supported
  • PC
  • SPARC
  • Mac
Energy Star Yes
Documents
ico-plus ico-minus
Product document xd3-40-2021.pdf XD3-40DDEK Product document xd3-40-2021.pdf MOD-XD3-40D
