Bixolon

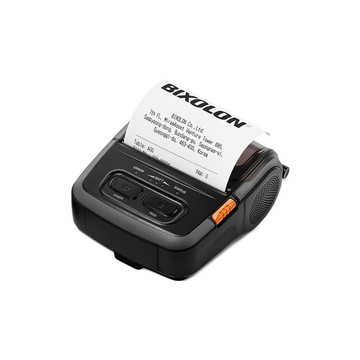

Bixolon SPP-R310 Plus, 203dpi, Bluetooth (iOS), USB, Serial

SKU:

SPP-R310PLUSIK5

Barcode Label Printers, Bixolon R310, Mobile Printer, Transmissive Sensor Package, Bluetooth, Black, RS-232 Serial, USB, Battery, Power Supply, Battery Charger, 1 Year Warranty
Description
ico-plus ico-minus
The Bixolon SPP-R310 is an innovative 3-inch mobile printer designed for the modern business environment. With its compact and ergonomic design, this lightweight device is perfect for mobile POS applications, ticketing, and retail. Offering versatile connectivity options including Bluetooth, WiFi, and USB, it features a robust battery life of up to 24 hours and an impressive print speed of 100 mm/sec. The printer also supports both receipt and label printing, making it an ideal choice for businesses on the go.
Key features:
  • Compact and lightweight: 30% lighter and 26% slimmer than its predecessor.
  • Long-lasting battery: Up to 24 hours standby time.
  • Fast printing: Prints receipts at up to 100 mm/sec and linerless labels at 80 mm/sec.
  • Multi-connectivity options: Includes Bluetooth, WiFi, USB, and serial connections.
  • Durable design: IP43 rated with a 1.8 m drop rate compliance.

Specifications:
  • Print Method: Direct Thermal
  • Print Speed:
    • Up to 100 mm/sec (Receipt)
    • Up to 80 mm/sec (Linerless)
  • Print Resolution: 203 dpi
  • Media Characteristics:
    • Media Type: Receipt, Label, and Linerless (Optional)
    • Media Width: Up to 72 mm
    • Media Roll Diameter: Up to 50 mm
  • Power: 7.4V Li-ion, 2,600 mAh, Rechargeable
  • Dimensions: 105.0 x 126.0 x 58.0 mm (4.14 x 4.97 x 2.29 inch)
  • Weight: 385 g with battery
  • Environmental:
    • Operating Temperature: -15~ 50°C (5 ~ 122°F)
    • Humidity: Operating 10~80% RH

Main Features

  • Equipment Format: Mobile

  • Rugged: Industrial

  • POS: Yes

  • Case color: Black

  • Connection: Serial, USB, Bluetooth

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 3.94 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 2.83"
Barcode Symbology Supported
  • Codabar
  • Code 39
  • Code 93
  • EAN-8
  • Code 128
  • ITF
  • UPC-A/E
  • AZTEC
  • Data Matrix
  • GS1 DataBar
  • Maxi Code
  • PDF417
  • QR Code
Application/Usage Mobile
Features
  • Magnetic Stripe Reader
  • Dust Resistant
  • Water Resistant
  • Ergonomic
  • Compact
  • Rugged
Mobile Device Printing Yes
Ingress Protection (IP) Rating IP54
Character Sets
  • 95 Alphanumeric
  • 128 x 33 Graphic
  • 32 International
  • Unicode
Optional Connectivity Wireless LAN
Fonts Included
  • Font A: 12 x 24
  • Font B: 9 x 17
  • Font C: 9 x 24
  • CHN: 24 x 24
Print Technology Direct Thermal
Memory
Standard Memory 8 MB
Interfaces/Ports
Serial Port Yes
USB Host Yes
USB Yes
Network & Communication
Bluetooth Yes
Near Field Communication (NFC) Yes
Media Types & Handling
Media Type
  • Receipt
  • Label
  • Linerless
Media Thickness 0.20 mil
Maximum Roll Diameter 1.97"
Maximum Label Width 3.15"
Fonts & Emulation
Language Emulation BXL/POS
Software
Software Included Emulation BXL / POS Driver / Utility Windows Driver OPOS / JPOS Driver Linux / Mac CUPS Driver Utility Program SDK / Plugin Android / iOS / Windows SDK Linux SDK Chrome SDK Xamarin SDK Cordova Plugin Browser / App Windows mPrint Browser (All) mPrint App (Android, iOS)
Power Description
Power Source Battery
Battery Information
Battery Included Yes
Environmental Conditions
Operating Temperature 14°F (-10°C) - 122°F (50°C)
Operating Relative Humidity 10% - 80%
Storage Temperature -22°F (-30°C) - 158°F (70°C)
Physical Characteristics
Form Factor Portable
Color Family Black
Product Color Black
Height 2.3"
Width 4.1"
Depth 5"
Weight (Approximate) 14.29 oz
Miscellaneous
Power Adapter Included Yes
Platform Supported
  • PC
  • iOS
  • Android
Energy Star Yes
