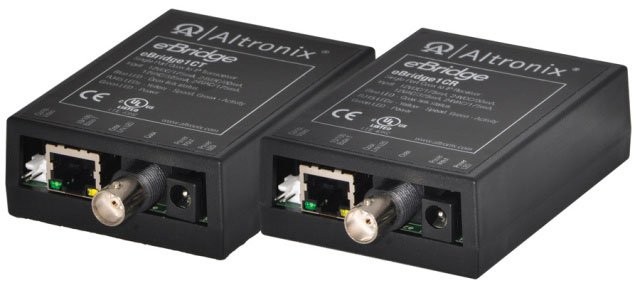

Altronix EBRIDGE16PCRX Wireless & Networking

The Altronix eBridge IP over Coax Kit is a game-changing solution for upgrading your analog CCTV systems to IP technology without the hassle of new cabling. With plug-and-play ease, this kit allows for high-speed 10/100Base-T Ethernet communication over existing coax cables, extending transmission distances up to 2,000 feet. It simultaneously transmits composite video signals and Ethernet data, making it ideal for diverse environments such as retail, airports, and schools. Upgrade with confidence while minimizing installation costs and maximizing performance.
Key features:

• Simultaneous transmission of composite video and digital IP video signals.
• Extended transmission distance of 2,000 ft over coax, eliminating repeaters.
• Plug-and-play design for easy retrofitting of existing CCTV installations.
• Compatibility with Megapixel, HD720, HD1080, and VGA cameras.
• Environmentally resilient with an operating temperature of -10°C to +50°C.

Specifications:

• Input Voltage: 12VDC to 24VDC or 16VAC to 24VAC Class 2 plug-in transformer
• Power Consumption:
  • 12VDC/275mA
  • 24VDC/110mA
  • 16VAC/375mA
  • 24VAC/200mA
• Ethernet: RJ45 connectivity, auto-crossover, 10/100BaseT speed
• Coax Connectivity: BNC, RG-59/U or similar
• Operating Humidity: 20 to 85%, non-condensing
• Dimensions: 2.5" x 3.8" x 1"
• Weight: Approx. 4 oz. (0.11 kg)
• Approval: UL/CUL Listed, CE European Conformity
