Datalogic PowerScan PBT9600 Handheld Scanner Bluetooth, High Performance, Removable Battery

SKU:

PBT9600-HPRBK10US

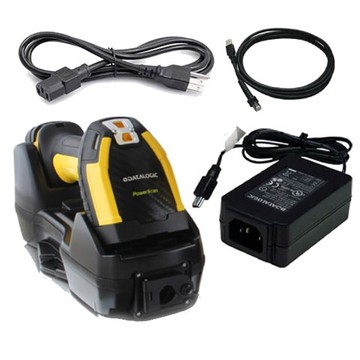

Barcode Scanner, Datalogic PBT9600, PowerScan PBT9600, Bluetooth, High Performance, Removable Battery, USB Kit (Kit includes Scanner PBT9600-HP, Cradle BC9630-BT, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0941)
Description
ico-plus ico-minus

The DataLogic PBT9600 Barcode Scanner is a cutting-edge handheld device designed for robust performance in industrial environments. Engineered for both 1D and 2D barcode reading, it features an ultra-rugged design and ergonomic balance to minimize operator fatigue during prolonged use. The wireless capabilities, powered by Datalogic's STAR Cordless System™ and Bluetooth® 5.0, enhance productivity while ensuring safety through instant feedback. With versatile optic options and a unique Wireless Charging System, the PBT9600 is an invaluable tool for logistics, manufacturing, and retail environments.


Key Features
  • Ultra-rugged design for harsh conditions
  • Bluetooth® 5.0 for seamless connectivity
  • Wireless Charging System reduces wear and tear
  • Multiple optic options for versatile scanning needs
  • Water and particulate sealing ratings of IP65 and IP67

Specifications
  • Model Name: PBT9600
  • Wireless Communication:
    • Datalogic STAR Cordless System
    • Bluetooth 5.0
    • Radio Range: Up to 230 m (754 ft)
  • Decoding Capability:
    • 1D/Linear Codes, 2D Codes, Postal Codes
    • Supports various standards including GS1 DataBar™
  • Battery:
    • Type: Lithium-Ion 3350 mAh
    • Charge time: 2.5 hours to 95%
  • Dimensions:
    • 19.7 x 14.9 x 7.9 cm (Cordless)
  • Weight: 415 g (14.6 oz)

Main Features

  • Rugged: Industrial

  • IP Rating: IP67

  • Range: Long Range

  • Connectivity: Cordless

  • Connection: RS232, Serial, USB, Bluetooth, Ethernet

  • Scanner Capability: 2D, 1D

  • Battery Features: Wireless Charging

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable/Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D:

  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code

Postal Codes:

  • Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes (HP and DC models)
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Area
Scanning Distance 40.20"
Features
  • Ergonomic Design
  • Beep
  • Vibration
  • Notification LED
  • 3GL
  • Removable Battery
Field of View (Horizontal) 38°
Field of View (Vertical) 24°
Reading Angle (Skew) 52°
Reading Angle (Pitch) 52°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Drop Specification
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast 15%
Minimum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 20kV
Network & Communication
Bluetooth Yes
Radio Frequency Yes
Interfaces/Ports
Host Interface
  • Serial
  • USB
  • Ethernet
Power Description
Power Supply Included Yes
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3350 mAh
Maximum Battery Recharge Time 3.20 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Durability
  • Water Resistant
  • Dust Resistant
  • Drop Resistant
Height 7.8"
Width 3.1"
Length 5.5"
Weight (Approximate) 14.64 oz
Miscellaneous
Package Contents
  • PowerScan PBT9600-HP Barcode Scanner
  • Cradle BC9630-BT
  • Cable CAB-552
  • Power Supply 8-0935
  • Power Cord 6003-0941
Ingress Protection (IP) Rating
  • IP67
  • IP65
Application/Usage
  • Industrial
  • Manufacturing
  • Warehouse
  • Logistics
  • Inventory
  • Picking
  • Assembly Line
  • Component Tracking
  • Packing
  • Sorting
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document powerscan9600.pdf PBT9600-HPRBK10US Product document powerscan9600.pdf MOD-PBT9600
