Datalogic

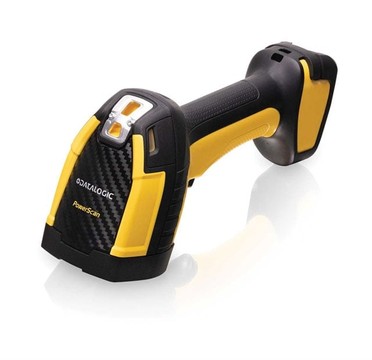

Datalogic PowerScan PBT9600 Barcode Reader 2D, Bluetooth 5.0, IP65/IP67, 100 m, 3350 mAh

SKU:

PBT9600-HPRB

Bluetooth scanner, 2D, imager (high density), incl.: vibration, Bluetooth (class 5.0), multi-interface (RS232, USB), protection class: IP65, IP67, incl.: battery, 3350mAh
Description
ico-plus ico-minus

The DataLogic PBT9600 Barcode Scanner is a cutting-edge handheld device designed for robust performance in industrial environments. Engineered for both 1D and 2D barcode reading, it features an ultra-rugged design and ergonomic balance to minimize operator fatigue during prolonged use. The wireless capabilities, powered by Datalogic's STAR Cordless System™ and Bluetooth® 5.0, enhance productivity while ensuring safety through instant feedback. With versatile optic options and a unique Wireless Charging System, the PBT9600 is an invaluable tool for logistics, manufacturing, and retail environments.


Key Features
  • Ultra-rugged design for harsh conditions
  • Bluetooth® 5.0 for seamless connectivity
  • Wireless Charging System reduces wear and tear
  • Multiple optic options for versatile scanning needs
  • Water and particulate sealing ratings of IP65 and IP67

Specifications
  • Model Name: PBT9600
  • Wireless Communication:
    • Datalogic STAR Cordless System
    • Bluetooth 5.0
    • Radio Range: Up to 230 m (754 ft)
  • Decoding Capability:
    • 1D/Linear Codes, 2D Codes, Postal Codes
    • Supports various standards including GS1 DataBar™
  • Battery:
    • Type: Lithium-Ion 3350 mAh
    • Charge time: 2.5 hours to 95%
  • Dimensions:
    • 19.7 x 14.9 x 7.9 cm (Cordless)
  • Weight: 415 g (14.6 oz)

Main Features

  • Rugged: Industrial

  • Case color: Black

  • IP Rating: IP67

  • Range: Standard Range

  • Connectivity: Cordless

  • Connection: RS232, USB, Ethernet

  • Scanner Capability: 2D, Imager, 1D, QR, Digimarc

  • Included Battery: Yes

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scanner Range High Density
Field of View (Horizontal) 38°
Field of View (Vertical) 24°
Reading Angle (Skew) 52°
Reading Angle (Pitch) 52°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Minimum Print Contrast 15%
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color White
Network & Communication
Bluetooth Yes
Radio Frequency Yes
Interfaces/Ports
Host Interface
  • Serial
  • USB
Battery Information
Battery Included Yes
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3350 mAh
Maximum Battery Recharge Time 2.50 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Height 7.8"
Width 3.1"
Length 5.5"
Weight (Approximate) 14.64 oz
Miscellaneous
Ingress Protection (IP) Rating
  • IP67
  • IP65
Application/Usage
  • Manufacturing
  • Warehouse
  • Logistics
  • Picking
  • Inventory
  • Asset Tracking
Documents
ico-plus ico-minus
Product document powerscan9600.pdf PBT9600-HPRB Product document powerscan9600.pdf MOD-PBT9600
