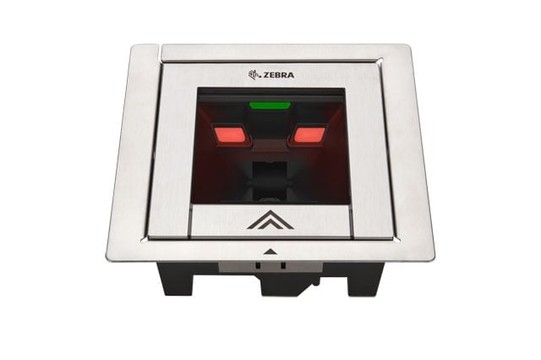

Zebra SP72 Barcode Scanner Horizontal, Single-plane, DL Parsing, Multi-interface, Sapphire Glass, Checkpoint EAS

SKU:

SP7208-DH00004SCNA

Checkpoint EAS and Sensormatic EAS support distinguish the Zebra SP7208-DH00004SCNA, an IP52-rated in-counter single-plane imager built for retail, pharmacy, convenience store, self-checkout, and kiosk environments. Its 1920 x 1200 image sensor reads 1D and 2D barcodes — including PDF417, DataMatrix, QR Code, Aztec, Digimarc, and all major GS1 DataBar and UPC/EAN variants — at scanning distances to 7.60 in, with a 129-degree horizontal and 76-degree vertical field of view and 360-degree roll tolerance. Code 39 resolves from 3 mil to 10 mil; DataMatrix from 5 mil to 15 mil; minimum print contrast is 15%, and the unit operates in ambient light up to 86100 lux. Red LED illumination and a data formatter are standard, and the scanner supports IBM 46XX, Keyboard Wedge, USB, Serial, and multi-interface host connections. At 1.90 lb with a 6-inch by 6-inch by 3.4-inch footprint and an operating range of 32°F (0°C) to 122°F (50°C), it ships with a cable and carries a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra SP72-H Sapphire is a professional horizontal presentation scanner engineered for reliable, high-throughput barcode capture in retail, grocery, kiosk and fixed-position applications. Built on Zebra’s SP72 platform, this wired 2D imager combines PRZM intelligent imaging with durable sapphire glass and IP52 protection to deliver consistent reads of 1D and 2D codes—including Digimarc—across a standard/short operating range. Designed for countertop or in-counter installations, the SP72-H simplifies integration with multi-interface and USB host options, supports EAS workflows, and offers a compact, serviceable form factor that reduces rescans and speeds transaction and conveyor processes where predictable horizontal read zones and dependable daily performance are essential.

Key Features

  • Durable sapphire window: Sapphire glass scan window resists wear and maintains reliable optical clarity in high-traffic checkout environments.
  • High-performance imaging: PRZM Intelligent Imaging and high-resolution sensors enable rapid, accurate capture of 1D and 2D barcodes, including Digimarc.
  • Reliable connectivity: Wired USB and multi-interface host options simplify POS and system integration for straightforward deployment.
  • Retail-ready design: Horizontal presentation form with IP52 protection and optional EAS support suits retail, grocery and kiosk workflows.
  • Flexible deployment range: Standard/short-range scan engine options provide consistent performance for countertop, in-counter and conveyor installations.

Specifications

  • Brand: Zebra
  • Product Name: Zebra SP72-H Sapphire
  • Product Type: Barcode Scanner
  • Form Factor: Horizontal / Presentation (single-plane)
  • Product Family / Series: SP72
  • Scan Engine: 2D imager
  • Imaging Technology: PRZM Intelligent Imaging
  • Connectivity / Interfaces: Wired USB, Multi-interface (USB, Serial, Keyboard Wedge, IBM 46XX as available)
  • Scanner Range: Short Range / Standard Range
  • Supported Codes / Symbologies: 1D, 2D, QR, Data Matrix, PDF417, Code 128, UPC, EAN, Code 39, Digimarc
  • Window / Glass Type: Sapphire glass
  • Ingress Protection (IP) Rating: IP52
  • Image Sensor Resolution: 1920 x 1200; 2.3 megapixel (model-dependent)
  • Minimum Bar Width: 3 mil
  • Power / Input Voltage: DC, 5 V
  • Checkpoint / EAS Support: Yes (model-dependent)
  • Shielded USB Cable Length: 7 ft (where included)

Main Features

  • Rugged: Commercial

  • Connection: Serial, USB

  • Scanner Capability: 1D, 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/ EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D:

  • All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm

Digimarc:

  • Digimarc barcodes
Light Source LED
Image Sensor Type Imager
Scanner Range Short Range
Scanning Distance 7.60"
Features
  • Sensormatic EAS
  • Checkpoint EAS
  • Beep
  • Data Formatter
  • Notification LED
Field of View (Horizontal) 129°
Field of View (Vertical) 76°
Reading Angle (Skew) 70°
Reading Angle (Pitch) 80°
Reading Angle (Roll) 360°
Image Formats
  • BMP
  • JPEG
  • RAW
Maximum Ambient Light 86100 lux
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 10 mil
Minimum Element Resolution (DataMatrix) 5 mil
Maximum Element Resolution (DataMatrix) 15 mil
Minimum Element Resolution (PDF417) 15 mil
Image Sensor Resolution 1920 x 1200
Illumination Type LED
Illumination Color Red
Air Electrostatic Discharge (+/-) 15kV
Interfaces/Ports
Host Interface
  • IBM 46XX
  • Keyboard Wedge
  • USB
  • Serial
  • Multi-interface
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 20% to 95%
Physical Characteristics
Form Factor In-counter
Color Family Black
Product Color Midnight Black
Durability
  • Spill Resistant
  • Dust Resistant
  • Dust Proof
Height 6"
Width 6"
Depth 3.4"
Weight (Approximate) 1.90 lb
Miscellaneous
Package Contents
  • 1 x SP7208 Series Single-Plane Scanner
  • 1 x Cable
Ingress Protection (IP) Rating IP52
Application/Usage
  • Retail
  • Pharmacy
  • Convenience Store
  • Self-checkout
  • Kiosk
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document sp72-series.pdf SP7208-DH00004SCNA  (PDF)
