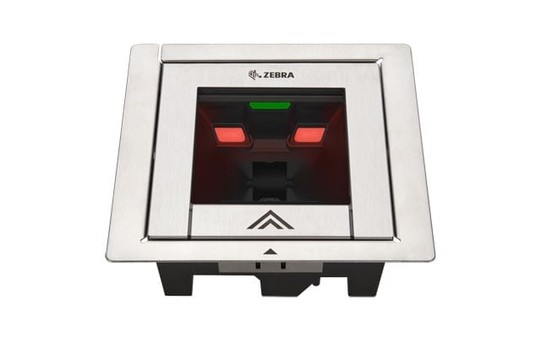

Zebra ScanMaster Barcode Scanner USB, 1D/2D, Stationary, Midnight black, Standard Range
SP7201-SH4U2100BGW
Select model
The Zebra SP72-H Barcode Scanner enhances checkout efficiency in retail environments by delivering high-performance scanning tailored for both manned and self-checkout lanes. With its compact design, it seamlessly integrates into existing setups or kiosks. Equipped with innovative features like a fast 2.3 MP sensor and smart illumination, this scanner can read a wide range of barcodes, including damaged ones, making it a reliable choice for grocery, convenience, and specialty stores. Its advanced loss prevention capabilities and user-friendly interface empower cashiers and enhance customer experiences.
Key Features
- High-Speed Scanning: Capture barcodes at up to 120 inches per second.
- Diverse Decoding: Supports 1D, 2D, Digimarc®, paper, and mobile barcodes.
- Enhanced Loss Prevention: Optional color camera for real-time fraud detection.
- Customizable Feedback: Adjust audible tones for a tailored customer experience.
- Rugged Design: IP52 sealing ensures durability against spills and dust.
Specifications
- Physical Characteristics:
- Dimensions: 6.0 in. H x 6.0 in. W x 3.4 in. D
- Weight: 30.4 oz. (Sapphire Glass)
- Input Voltage: 4.7 to 5.2 VDC
- Imaging Characteristics:
- Resolution: 2.3 Megapixel (1920 x 1200 pixels)
- Swipe Speed: Up to 120 in./305 cm per second
- User Environment:
- Operating Temperature: 32° to 104°F (0° to 50°C)
- Storage Temperature: -40° to 158°F (-40° to 70°C)
- Humidity: 20% to 95% RH, non-condensing
- Connectivity:
- Interface: USB 3 Type-C
- Keyboard Support: Supports over 90 international keyboards
Main Features
-
Rugged: Commercial
-
Connection: USB
-
Scanner Capability: 2D, 1D
| Technical Information | |
|---|---|
| Connectivity Technology | Cable |
| Scanner Range | Standard Range |
| Scanning Distance | 7.64" |
| Features |
|
| Cable Type Included | USB |
| Field of View (Horizontal) | 129° |
| Field of View (Vertical) | 76° |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 80° |
| Reading Angle (Roll) | 360° |
| Image Formats |
|
| Maximum Ambient Light | 86100 lux |
| Drop Specification |
5 ft./1.5 m |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil |
| Maximum Element Resolution (Code 39) | 10 mil |
| Minimum Element Resolution (DataMatrix) | 5 mil |
| Maximum Element Resolution (DataMatrix) | 15 mil |
| Maximum Element Resolution (PDF417) | 15 mil |
| Illumination Type | LED |
| Illumination Color | Red |
| Interfaces/Ports | |
|---|---|
| Host Interface | USB |
| Environmental Conditions | |
|---|---|
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 20% to 95% |
| Physical Characteristics | |
|---|---|
| Rugged | Yes |
| Color Family | Black |
| Product Color | Midnight Black |
| Height | 6" |
| Width | 6" |
| Depth | 3.4" |
| Miscellaneous | |
|---|---|
| Ingress Protection (IP) Rating |
|
| Application/Usage |
|
sp72-series.pdf SP7201-SH4U2100BGW
sp72-series.pdf MOD-SP72-H
