Zebra

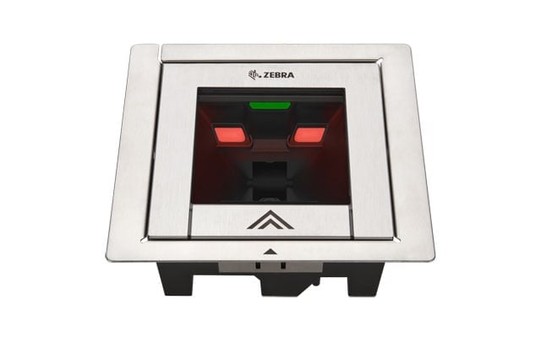

Zebra SP72 Barcode Scanner Horizontal, USB, Standard Range, Checkpoint EAS, Sapphire Glass

SKU:

SP7201-SH00004SCWW

Barcode Scanners, Zebra SP72-H, SP7201: Single Plane, Horizontal, USB Only, No AUX Port, Standard Range, Midnight Black, Checkpoint EAS (CBL-CE0072 Cable Included), Sapphire Glass
Description
ico-plus ico-minus

The Zebra SP72-H Barcode Scanner enhances checkout efficiency in retail environments by delivering high-performance scanning tailored for both manned and self-checkout lanes. With its compact design, it seamlessly integrates into existing setups or kiosks. Equipped with innovative features like a fast 2.3 MP sensor and smart illumination, this scanner can read a wide range of barcodes, including damaged ones, making it a reliable choice for grocery, convenience, and specialty stores. Its advanced loss prevention capabilities and user-friendly interface empower cashiers and enhance customer experiences.


Key Features
  • High-Speed Scanning: Capture barcodes at up to 120 inches per second.
  • Diverse Decoding: Supports 1D, 2D, Digimarc®, paper, and mobile barcodes.
  • Enhanced Loss Prevention: Optional color camera for real-time fraud detection.
  • Customizable Feedback: Adjust audible tones for a tailored customer experience.
  • Rugged Design: IP52 sealing ensures durability against spills and dust.

Specifications
  • Physical Characteristics:
    • Dimensions: 6.0 in. H x 6.0 in. W x 3.4 in. D
    • Weight: 30.4 oz. (Sapphire Glass)
    • Input Voltage: 4.7 to 5.2 VDC
  • Imaging Characteristics:
    • Resolution: 2.3 Megapixel (1920 x 1200 pixels)
    • Swipe Speed: Up to 120 in./305 cm per second
  • User Environment:
    • Operating Temperature: 32° to 104°F (0° to 50°C)
    • Storage Temperature: -40° to 158°F (-40° to 70°C)
    • Humidity: 20% to 95% RH, non-condensing
  • Connectivity:
    • Interface: USB 3 Type-C
    • Keyboard Support: Supports over 90 international keyboards

Main Features

  • Rugged: Commercial

  • Connection: USB

  • Scanner Capability: 2D, Imager, 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanner Range Standard Range
Scanning Distance 7.64"
Features
  • Checkpoint EAS
  • Sensormatic EAS
  • Beep
  • Notification LED
Field of View (Horizontal) 129°
Field of View (Vertical) 76°
Reading Angle (Skew) 70°
Reading Angle (Pitch) 80°
Reading Angle (Roll) 360°
Image Formats
  • BMP
  • JPEG
Maximum Ambient Light 86100 lux
Drop Specification

5 ft./1.5 m

Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 10 mil
Minimum Element Resolution (DataMatrix) 5 mil
Maximum Element Resolution (DataMatrix) 15 mil
Maximum Element Resolution (PDF417) 15 mil
Illumination Type LED
Illumination Color Red
Interfaces/Ports
Host Interface USB
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 20% to 95%
Physical Characteristics
Rugged Yes
Product Color Midnight Black
Height 6"
Width 6"
Depth 3.4"
Weight (Approximate) 1.90 lb
Miscellaneous
Ingress Protection (IP) Rating
  • IP52
  • IP66
Application/Usage
  • Retail
  • Pharmacy
  • Convenience Store
Documents
ico-plus ico-minus
Product document sp72-series.pdf SP7201-SH00004SCWW Product document sp72-series.pdf MOD-SP72-H
