Zebra

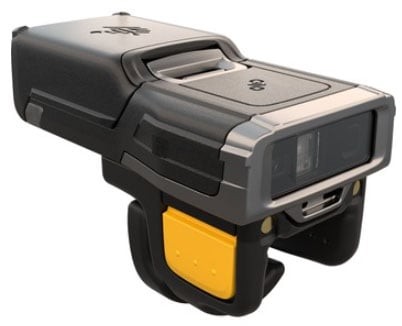

Zebra RS6100 Wearable Barcode Scanner SE55, Long Range, 72in, Freezer Battery, Bluetooth 5.2, Rugged

SKU:

RS61B0-KFSSYWR

Barcode Scanner, Zebra RS6100, RS6100 Wearable Scanner, SE55, Freezer Battery (660mAh), Single Trigger, -30oC to +50oC Operation, Worldwide
Description
ico-plus ico-minus

Experience unparalleled efficiency with the Zebra RS6100 Bluetooth Wearable Scanner. Engineered for maximum versatility, this compact and lightweight scanner captures 1D and 2D barcodes from near to 40 feet away, performing flawlessly in challenging conditions. With five interchangeable wearing options, you can find the perfect fit for any task. Designed for extreme environments, the RS6100 thrives regardless of weather conditions. Its removable battery system and seamless Bluetooth pairing ensure uninterrupted productivity, making it the ideal choice for any fast-paced operation.


Key features:

  • Compact and lightweight - Weighing just over 2 ounces.
  • Advanced scanning - Captures barcodes from 2 inches to 40 feet.
  • Versatile wearing options - Choose from five styles for comfortable use.
  • Durable design - Tested for extreme conditions, including cold and heat.
  • Instant pairing - Easy NFC connectivity with compatible devices.

Specifications:

  • Dimensions: 2.62 in. L x 1.29 in. W x 0.83 in. D
  • Weight: 2.47 oz. (with standard battery)
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Scanning Range: Up to 40 ft.
  • Power: 480 mAh standard battery, removable and rechargeable
  • Drop Specification: Survives drops from 6 ft./1.8 m
  • Supported 1D/2D Barcodes: Includes Code 39, PDF417, QR Code, Data Matrix
  • Warranty: 1 year from the date of shipment

Main Features

  • Rugged: Industrial

  • Connection: Bluetooth

  • Scanner Capability: 1D, 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scan Engine Model SE55
Light Source Laser
Scan Mode Trigger
Scanner Range Long Range
Scanning Distance 72.01"
Features
  • Beep
  • Notification LED
  • Vibration
  • NFC Reader
Field of View (Horizontal) 37°
Field of View (Vertical) 21°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 107639 lux
Drop Specification
  • Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 100 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 100 mil
Minimum Element Resolution (PDF417) 5 mil
Maximum Element Resolution (PDF417) 6.7 mil
Image Sensor Resolution 2688 x 1520
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 15kV DC
Contact Electrostatic Discharge (+/-) 8kV DC
Network & Communication
Bluetooth Yes
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 660 mAh
Environmental Conditions
Operating Temperature -22°F (-30°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Wearable
Rugged Yes
Width 1.3"
Depth 0.8"
Length 2.6"
Miscellaneous
Ingress Protection (IP) Rating IP65
Application/Usage
  • Warehouse
  • Picking
  • Packing
  • Sorting
  • Distribution
  • Manufacturing
  • Inventory
  • Component Tracking
  • Assembly Line
  • Transportation
  • Logistics
  • Retail
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document rs6100.pdf RS61B0-KFSSYWR Product document rs6100.pdf MOD-RS6100
