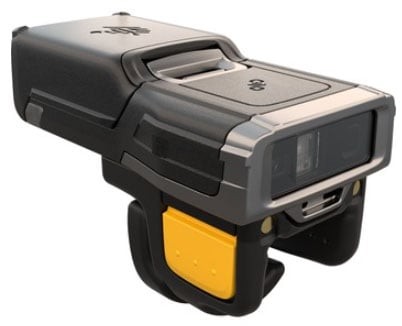

Zebra RS6100 Wearable Barcode Reader Double Trigger, 2D, SE5500, Bluetooth, IP65, 735mAh

SKU:

RS61B0-KEDSXWR

Bluetooth scanner, 2D, imager (SE5500), trigger, Bluetooth, incl.: battery, extended, 735mAh, order separately: charging cradle, operating: -30° up to +50°C
Description
ico-plus ico-minus

Experience unparalleled efficiency with the Zebra RS6100 Bluetooth Wearable Scanner. Engineered for maximum versatility, this compact and lightweight scanner captures 1D and 2D barcodes from near to 40 feet away, performing flawlessly in challenging conditions. With five interchangeable wearing options, you can find the perfect fit for any task. Designed for extreme environments, the RS6100 thrives regardless of weather conditions. Its removable battery system and seamless Bluetooth pairing ensure uninterrupted productivity, making it the ideal choice for any fast-paced operation.


Key features:

  • Compact and lightweight - Weighing just over 2 ounces.
  • Advanced scanning - Captures barcodes from 2 inches to 40 feet.
  • Versatile wearing options - Choose from five styles for comfortable use.
  • Durable design - Tested for extreme conditions, including cold and heat.
  • Instant pairing - Easy NFC connectivity with compatible devices.

Specifications:

  • Dimensions: 2.62 in. L x 1.29 in. W x 0.83 in. D
  • Weight: 2.47 oz. (with standard battery)
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Scanning Range: Up to 40 ft.
  • Power: 480 mAh standard battery, removable and rechargeable
  • Drop Specification: Survives drops from 6 ft./1.8 m
  • Supported 1D/2D Barcodes: Includes Code 39, PDF417, QR Code, Data Matrix
  • Warranty: 1 year from the date of shipment

Main Features

  • Rugged: Industrial

  • IP Rating: IP65

  • Connection: Bluetooth

  • Scanner Capability: 2D, 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

Supported 1D Symbologies:

  • Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)

Supported 2D Symbologies:

  • PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin),Postal Codes

Supported OCR Symbologies:

  • ? OCR-A, OCR-B
Scan Engine Model SE55
Light Source Laser
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Area
Scanner Range Standard Range
Scanning Distance 46.17 ft
Features
  • Beep
  • Vibration
  • Notification LED
  • NFC Reader
Field of View (Horizontal) 37°
Field of View (Vertical) 21°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 107639 lux
Drop Specification

Multiple 6 ft./1.8 m drops to concrete over the operating temperature range

Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 100 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 100 mil
Minimum Element Resolution (PDF417) 5 mil
Maximum Element Resolution (PDF417) 6.7 mil
Image Sensor Resolution 2688 x 1520
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 15kV DC
Contact Electrostatic Discharge (+/-) 8kV DC
Network & Communication
Bluetooth Yes
Battery Information
Battery Included Yes
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 735 mAh
Environmental Conditions
Operating Temperature -22°F (-30°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Wearable
Rugged Yes
Product Material Plastic
Width 1.3"
Depth 0.8"
Length 2.6"
Miscellaneous
Ingress Protection (IP) Rating IP65
Application/Usage
  • Warehouse
  • Manufacturing
  • Inventory
  • Picking
  • Sorting
  • Transportation
  • Logistics
  • Assembly Line
  • Retail
  • Distribution
Platform Supported
  • Smartphone
  • PC
Documents
ico-plus ico-minus
Product document rs6100.pdf RS61B0-KEDSXWR Product document rs6100.pdf MOD-RS6100
