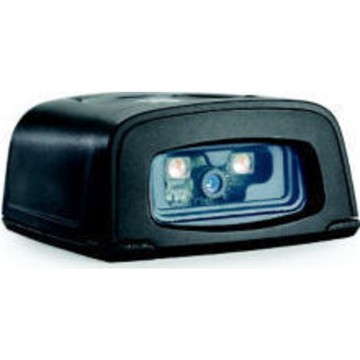

Zebra DS457 Fixed Mount Barcode Scanner 2D, High Density, DPM, Dual Interface, IP54, Black

SKU:

DS457-DP20004ZZWW

Zebra HD DPM delivers fast, hands-free 1D and 2D barcode capture with high-density and direct part marking support in a compact fixed-mount design. Built for OEM integration, the DS457 series brings Zebra’s proven imaging platform to space-constrained kiosks, manufacturing lines, medical devices, and retail counters. It offers dual interface connectivity, IP54 protection, and a small black housing designed for reliable embedded scanning.
Description
ico-plus ico-minus

The Zebra DS457 Imager is a compact fixed‑mount barcode scanner engineered for hands‑free, embedded and point‑of‑service installations where space is limited but performance is essential. Designed to capture 1D, 2D and Direct Part Mark (DPM) codes — including PDF417, DataMatrix, QR Code and Aztec — the DS457 family supports retail checkout, self‑service kiosks, manufacturing lines, transportation sorting and security checkpoints. With a small footprint, robust IP54 sealing, up to 30‑inch drop resistance and fast decoding from a 752 x 480 imaging sensor, the DS457 delivers reliable, high‑throughput scanning and flexible system integration while minimizing downtime and installation complexity.

Key Features

  • Multi‑code capture: Reads 1D, 2D and DPM codes plus common symbologies (PDF417, DataMatrix, QR, Aztec) to support diverse workflows.
  • Compact fixed‑mount design: Small footprint and rigid construction make it ideal for kiosks, embedded stations and space‑constrained counters.
  • Flexible connectivity: Multiple interface options across variants — Serial/RS232, USB and YUN GUI — enable straightforward integration into existing systems.
  • Rugged deployment: IP54 ingress protection and 30‑inch drop resistance provide durability for industrial and retail environments.
  • Consistent, fast decoding: 752 x 480 imager and tuned decoding deliver accurate, rapid reads to keep throughput high and reduce rescans.

Specifications

  • Product Reference: Zebra DS457 Barcode Scanner
  • Product Name: Zebra DS457 Imager
  • Brand: Zebra
  • Category: Fixed Mount Scanners
  • Scan Capability: 1D, 2D, Direct Part Mark (DPM)
  • Supported Symbologies: PDF417, DataMatrix, QR Code, Aztec
  • Image Resolution: 752 x 480 pixels
  • Field of View (DS457‑SR): 39.6° (H) x 25.7° (V)
  • Field of View (DS457‑HD / DS457‑DP): 38.4° (H) x 24.9° (V)
  • Mounting Type / Form Factor: Fixed mount
  • Interfaces / Connectivity: Serial (RS232), USB, YUN GUI (varies by variant)
  • Ingress Protection Rating: IP54
  • Dimensions: 1.15 x 2.3 x 2.44 in (62 x 29.2 x 58.4 mm for some variants)
  • Operating Voltage: 5 VDC
  • Operating Current / Maximum: 450 mA
  • Operating Temperature Range: -4 to 122 °F
  • Drop Resistance: 30 in. (approx. 76 cm)
  • Color: Black (selected variants)

Main Features

  • Rugged: Industrial

  • IP Rating: IP54

  • Range: Direct Part Mark

  • Connection: Serial, USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • All major 1-D bar codes
2D:
  • PDF417
  • DataMatrix
  • QR Code
  • Aztec
  • Composite Codes
  • MaxiCode

Postal Codes:

  • US Postnet
  • US Planet
  • UK Postal
  • Australian Postal
  • Japan Postal
Image Sensor Type Imager
Interfaces/Ports
Host Interface
  • Serial
  • USB
Physical Characteristics
Form Factor Fixed Mount
Product Color Black
Height 1.2"
Width 2.4"
Length 2.3"
Weight (Approximate) 3.90 oz
Documents
ico-plus ico-minus
Product document mod-ds457-zebra-readers-datasheet.pdf DS457-DP20004ZZWW Product document mod-ds457-zebra-readers-quick-guide-1.pdf DS457-DP20004ZZWW Product document mod-ds457-zebra-readers-user-manual.pdf DS457-DP20004ZZWW Product document motorola-ds457.pdf DS457-DP20004ZZWW Product document mod-ds457-zebra-readers-datasheet.pdf MOD-DS457 Product document mod-ds457-zebra-readers-quick-guide-1.pdf MOD-DS457 Product document mod-ds457-zebra-readers-user-manual.pdf MOD-DS457
FAQs
ico-plus ico-minus
What barcode types can the Zebra DS457 fixed mount scanner read?
The DS457 reads 1D, 2D, and Direct Part Mark (DPM) codes, with supported symbologies including PDF417, DataMatrix, QR Code, and Aztec.
What interfaces does the Zebra DS457 support for system integration?
The DS457 offers Serial (RS232), USB, and YUN GUI connectivity options, allowing integration into a range of existing point-of-service and industrial systems.
How durable is the Zebra DS457 for demanding deployment environments?
It carries an IP54 ingress protection rating for resistance to dust and water, and it withstands drops of up to 30 inches onto concrete, making it suitable for both retail and industrial settings.
What is the imaging sensor resolution on the Zebra DS457, and how does the field of view differ across variants?
The DS457 uses a 752 x 480 pixel imager. The DS457-SR has a field of view of 39.6° horizontal by 25.7° vertical, while the DS457-HD and DS457-DP share a field of view of 38.4° horizontal by 24.9° vertical.
What are the operating power requirements for the Zebra DS457?
The DS457 operates at 5 VDC with a maximum operating current of 450 mA.
In which industries or applications is the Zebra DS457 best suited?
The DS457 is designed for retail checkout, self-service kiosks, manufacturing lines, transportation sorting, and security checkpoints where hands-free, fixed-mount scanning in a compact footprint is required.
