Honeywell

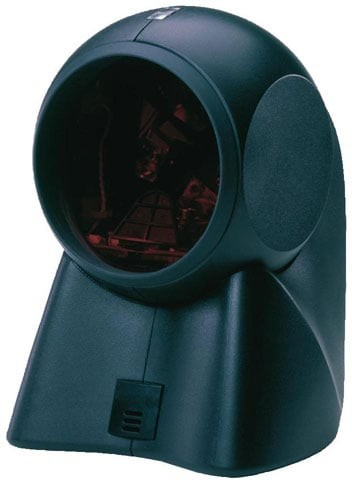

ORBIT 7120 USB BLACK KIT LW SPD

SKU:

MK7120-31A38-N

Shipped as a kit with a USB cable included, the Honeywell MK7120-31A38-N is a USB-connected, laser-based presentation scanner with a 20-line omnidirectional scan pattern and a scanning distance of 9.80 inches. Its scan head tilts within a 30-degree range to accommodate objects of varying sizes, while skew and pitch reading angles of 60 degrees each support flexible item presentation. The scanner operates in ambient light up to 4842 lux and requires just 180 mA input current, dropping to 170 mA in standby. The black desktop chassis weighs 14.11 oz and is built to withstand 1.2 m drops, with a minimum print contrast requirement of 35%. Operating temperature spans 32 degrees F to 104 degrees F, with storage rated to -40 degrees F through 140 degrees F and humidity tolerance of 5% to 95% non-condensing. RoHS and WEEE compliant, the MK7120-31A38-N is backed by a 3-year limited warranty and suited to convenience retail and specialty store point-of-sale environments.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell Orbit 7120 is a hands-free omnidirectional laser presentation scanner designed for retail environments where counter space is at a premium, including convenience, liquor, and specialty stores. Operating at 1,120 scan lines per second with a patented 20-line omnidirectional scan pattern across 5 fields of 4 parallel lines, it delivers aggressive first-pass read rates for standard 1D and GS1 DataBar symbologies. Its award-winning contoured form factor — weighing just 400 g and measuring 105 mm x 102 mm x 150 mm — doubles as a handheld scanner for large or bulky items, while the 30° adjustable scan head adds flexibility for varied product sizes. USB and RS232 host interfaces, OPOS/JPOS compatibility, and user-replaceable cables simplify POS integration, and drop resistance to 1.2 m keeps the unit productive on busy checkout counters.

Main Features

  • Rugged: Industrial

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Light Source Laser
Scan Rate 20 scan/s
Scan Pattern Omni-directional
Scanning Distance 9.80"
Features
  • Beep
  • Notification LED
Cable Type Included USB
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Maximum Ambient Light 4842 lux
Drop Specification

Designed to withstand 1.2 m (4´) drops
Minimum Print Contrast 35%
Interfaces/Ports
Host Interface USB
Power Description
Input Current 180 mA
Standby Current 170 mA
Environmental Conditions
Operating Temperature 32°F (0°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Desktop
Rugged Yes
Color Family Black
Product Color Black
Height 5.9"
Width 4"
Weight (Approximate) 14.11 oz
Miscellaneous
Package Contents
  • Orbit 7120 Barcode Scanner
  • USB Cable
Application/Usage Retail
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document ms7120.pdf MK7120-31A38-N Product document ms7120.pdf MOD-MS7120ORBIT
FAQs
ico-plus ico-minus
What host interfaces does the Honeywell Orbit 7120 support for connecting to a POS system?
The Orbit 7120 supports USB, RS232, Keyboard Wedge, and IBM 468xx (RS485) host interfaces, giving integrators flexibility to connect to most POS environments without additional converters.
What barcode symbologies can the Honeywell Orbit 7120 read?
It reads standard 1D and GS1 DataBar symbologies; it does not decode 2D symbologies such as QR codes or Data Matrix.
What is the scan speed and scan pattern of the Honeywell Orbit 7120?
The scanner delivers 1120 scan lines per second using an omnidirectional pattern of 5 fields of 4 parallel lines, for a total of 20 scan lines.
What are the physical dimensions and weight of the Honeywell Orbit 7120, and can it be used handheld as well as on a counter?
The unit measures 105 mm x 102 mm x 150 mm (4.1 in x 4.0 in x 5.9 in) and weighs 400 g (14.1 oz); its contoured shape allows it to be lifted and used as a handheld scanner when dealing with large or bulky items.
What warranty does the Honeywell Orbit 7120 carry, and how is firmware updated?
The Orbit 7120 includes a 3-year factory warranty, and firmware updates are loaded into Flash ROM using Honeywell's free MetroSet 2 configuration software via a standard PC.
What environmental conditions is the Honeywell Orbit 7120 rated for?
It operates from 0°C to 40°C (32°F to 104°F), tolerates storage temperatures from -40°C to 60°C (-40°F to 140°F), handles humidity from 5% to 95% non-condensing, is sealed to resist airborne particulate contaminants, and is designed to withstand 1.2 m (4 ft) drops.
