Honeywell

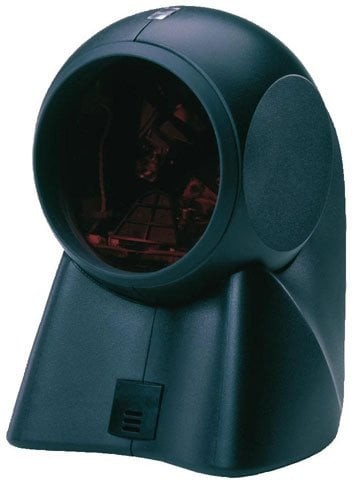

Honeywell Orbit 7120, 1D, USB, black

SKU:

MS7120-38-3

The Honeywell MS7120-38-3 connects via USB and ships without a cable, making the interface the defining configuration choice for this desktop presentation scanner. Its laser light source delivers an omni-directional scan pattern at a maximum resolution of 5 mil, with a depth of field that extends from 1.0 in to 2.0 in at 5.2 mil, 0 in to 5.9 in at 7.5 mil, 0 in to 6.9 in at 10 mil, and 0 in to 9.8 in at 26 mil. Symbology support spans a broad range of standard 1D and GS1 DataBar codes -- including Code 128, Code 39, UPC-A, EAN-13, ISBT 128, ITF-14, and GS1 DataBar Expanded Stacked, among others. The black desktop chassis measures 5.9 in tall, 4 in wide, and 4.1 in deep, weighing 14.10 oz. RoHS and WEEE compliant, the MS7120-38-3 is backed by a 3-year limited warranty and suits counter-space-constrained retail environments.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell Orbit 7120 is a hands-free omnidirectional laser presentation scanner designed for retail environments where counter space is at a premium, including convenience, liquor, and specialty stores. Operating at 1,120 scan lines per second with a patented 20-line omnidirectional scan pattern across 5 fields of 4 parallel lines, it delivers aggressive first-pass read rates for standard 1D and GS1 DataBar symbologies. Its award-winning contoured form factor — weighing just 400 g and measuring 105 mm x 102 mm x 150 mm — doubles as a handheld scanner for large or bulky items, while the 30° adjustable scan head adds flexibility for varied product sizes. USB and RS232 host interfaces, OPOS/JPOS compatibility, and user-replaceable cables simplify POS integration, and drop resistance to 1.2 m keeps the unit productive on busy checkout counters.

Main Features

  • Connection: USB

  • Barcode Type: 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Barcode Symbology Supported
  • Reads Standard 1D and GS1 DataBar Symbologies

Linear:

  • ABC Codabar (American Blood Commission)
  • China Post
  • Codabar
  • Code 11
  • Code 128
  • Code 32 Pharmaceutical (PARAF)
  • Code 39
  • Code 93 and 93i
  • EAN-13 (including Bookland EAN)
  • EAN-13 with Add-On
  • EAN-13 with Extended Coupon Code
  • EAN-8
  • EAN-8 with Add-On
  • GS1 Databar Expanded
  • GS1 Databar Limited
  • GS1 DataBar Omnidirectional
  • GS1 Databar Truncated
  • GS1-128
  • Interleaved 2 of 5
  • ISBT 128
  • ITF-14
  • Matrix 2 of 5
  • MSI-Plessey
  • UK Plessey Code
  • Straight 2 of 5 IATA
  • Straight 2 of 5 Industrial
  • Telepen
  • Trioptic Code
  • UPC-A
  • UPC-A with Add-On
  • UPC-A with Extended Coupon Code
  • UPC-E
  • UPC-E with Add-On

Stacked:

  • GS1 Databar Expanded Stacked
  • GS1 Databar Stacked
  • GS1 Databar Stacked Omnidirectional
Light Source Laser
Maximum Scan Resolution 5 mil
Depth of Field
  • 1.0" - 2.0"@5.2mil
  • 0" - 5.9"@7.5mil
  • 0" - 6.9"@10mil
  • 0" - 8.5"@13mil
  • 0" - 9.8"@26mil
Scan Pattern Omni-directional
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Desktop
Product Color Black
Height 5.9"
Width 4"
Depth 4.1"
Weight (Approximate) 14.10 oz
Miscellaneous
Package Contents
  • Orbit MS7120 Desktop Bar Code Reader
  • MetroSelect Programming Guide
  • 7120 Installation and User's Guide
Additional Information

USB Cable separate
Environmentally Friendly Yes
Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document ms7120.pdf MS7120-38-3  (PDF)
FAQs
ico-plus ico-minus
What host interfaces does the Honeywell Orbit 7120 support for connecting to a POS system?
The Orbit 7120 supports USB, RS232, Keyboard Wedge, and IBM 468xx (RS485) host interfaces, giving integrators flexibility to connect to most POS environments without additional converters.
What barcode symbologies can the Honeywell Orbit 7120 read?
It reads standard 1D and GS1 DataBar symbologies; it does not decode 2D symbologies such as QR codes or Data Matrix.
What is the scan speed and scan pattern of the Honeywell Orbit 7120?
The scanner delivers 1120 scan lines per second using an omnidirectional pattern of 5 fields of 4 parallel lines, for a total of 20 scan lines.
What are the physical dimensions and weight of the Honeywell Orbit 7120, and can it be used handheld as well as on a counter?
The unit measures 105 mm x 102 mm x 150 mm (4.1 in x 4.0 in x 5.9 in) and weighs 400 g (14.1 oz); its contoured shape allows it to be lifted and used as a handheld scanner when dealing with large or bulky items.
What warranty does the Honeywell Orbit 7120 carry, and how is firmware updated?
The Orbit 7120 includes a 3-year factory warranty, and firmware updates are loaded into Flash ROM using Honeywell's free MetroSet 2 configuration software via a standard PC.
What environmental conditions is the Honeywell Orbit 7120 rated for?
It operates from 0°C to 40°C (32°F to 104°F), tolerates storage temperatures from -40°C to 60°C (-40°F to 140°F), handles humidity from 5% to 95% non-condensing, is sealed to resist airborne particulate contaminants, and is designed to withstand 1.2 m (4 ft) drops.
