Honeywell

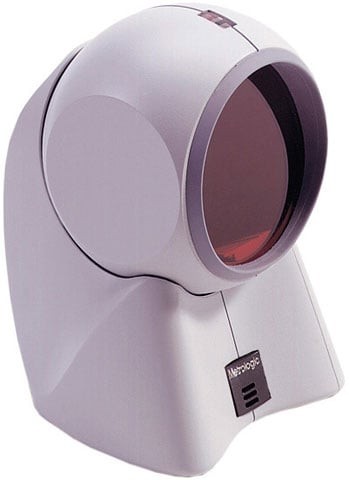

ORBIT 7120 USB GRAY KIT LW SPD

SKU:

MK7120-71A38-N

With a USB interface and a patented 20-line omnidirectional laser scan pattern, the Honeywell MK7120-71A38-N delivers 1D and GS1 DataBar barcode reading across a scanning distance of 9.80 in in a light gray presentation scanner that doubles as a handheld for large or bulky items. The scanning head tilts within a 30-degree range to accommodate items of varying sizes, while skew and pitch reading angles of 60 degrees each and a minimum print contrast of 35% support reliable first-pass reads under ambient light up to 4842 lux. Operating power consumption reaches a maximum of 900 mW at 180 mA input current, with standby current of 170 mA, across an operating temperature range of 32 degrees F (0 degrees C) to 104 degrees F (40 degrees C). The unit weighs 14.11 oz and measures 5.9 in tall, and the chassis is designed to withstand 1.2 m drops. RoHS and WEEE compliance are standard, and the scanner is backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell Orbit 7120 is a hands-free omnidirectional laser presentation scanner designed for retail environments where counter space is at a premium, including convenience, liquor, and specialty stores. Operating at 1,120 scan lines per second with a patented 20-line omnidirectional scan pattern across 5 fields of 4 parallel lines, it delivers aggressive first-pass read rates for standard 1D and GS1 DataBar symbologies. Its award-winning contoured form factor — weighing just 400 g and measuring 105 mm x 102 mm x 150 mm — doubles as a handheld scanner for large or bulky items, while the 30° adjustable scan head adds flexibility for varied product sizes. USB and RS232 host interfaces, OPOS/JPOS compatibility, and user-replaceable cables simplify POS integration, and drop resistance to 1.2 m keeps the unit productive on busy checkout counters.

Main Features

  • Rugged: Industrial

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Barcode Symbology Supported
  • Reads standard 1D
  • GS1 DataBar symbologies
Light Source Laser
Scan Pattern
  • Omni-directional
  • Single Line
Scanning Distance 9.80"
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Maximum Ambient Light 4842 lux
Drop Specification

Designed to withstand 1.2 m (4´) drops
Minimum Print Contrast 35%
Interfaces/Ports
Host Interface USB
Power Description
Maximum Operating Power Consumption 900 mW
Input Current 180 mA
Standby Current 170 mA
Environmental Conditions
Operating Temperature 32°F (0°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Color Family Gray
Product Color Light Gray
Height 5.9"
Width 4"
Length 4.1"
Weight (Approximate) 14.11 oz
Miscellaneous
Application/Usage Retail
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document ms7120.pdf MK7120-71A38-N Product document ms7120.pdf MOD-MS7120ORBIT
FAQs
ico-plus ico-minus
What host interfaces does the Honeywell Orbit 7120 support for connecting to a POS system?
The Orbit 7120 supports USB, RS232, Keyboard Wedge, and IBM 468xx (RS485) host interfaces, giving integrators flexibility to connect to most POS environments without additional converters.
What barcode symbologies can the Honeywell Orbit 7120 read?
It reads standard 1D and GS1 DataBar symbologies; it does not decode 2D symbologies such as QR codes or Data Matrix.
What is the scan speed and scan pattern of the Honeywell Orbit 7120?
The scanner delivers 1120 scan lines per second using an omnidirectional pattern of 5 fields of 4 parallel lines, for a total of 20 scan lines.
What are the physical dimensions and weight of the Honeywell Orbit 7120, and can it be used handheld as well as on a counter?
The unit measures 105 mm x 102 mm x 150 mm (4.1 in x 4.0 in x 5.9 in) and weighs 400 g (14.1 oz); its contoured shape allows it to be lifted and used as a handheld scanner when dealing with large or bulky items.
What warranty does the Honeywell Orbit 7120 carry, and how is firmware updated?
The Orbit 7120 includes a 3-year factory warranty, and firmware updates are loaded into Flash ROM using Honeywell's free MetroSet 2 configuration software via a standard PC.
What environmental conditions is the Honeywell Orbit 7120 rated for?
It operates from 0°C to 40°C (32°F to 104°F), tolerates storage temperatures from -40°C to 60°C (-40°F to 140°F), handles humidity from 5% to 95% non-condensing, is sealed to resist airborne particulate contaminants, and is designed to withstand 1.2 m (4 ft) drops.
