Hanwha Vision

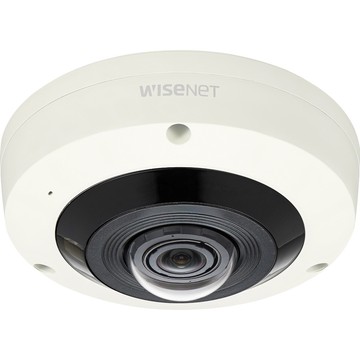

Hanwha Vision XNF-8010RV Security Camera

SKU:

XNF-8010RV

Security Cameras, Hanwha Techwin America XNF-8010RV, Wisenet, 6 Megapixel Outdoor Network Camera, Color, Fisheye, 49.21 ft Infrared Night Vision, H.265, H.264, MJPEG, 2048 x 2048, 1.60 mm Fixed Lens, CMOS, Gooseneck, Wall Mount, Pendant Mount, Parapet Mount, Ceiling Mount, Pole Mount, Corner Mount, Flush Mount, IK10, IP66, Vandal Resistant
Description
ico-plus ico-minus
Parts and products from Hanwha Vision.
Technical Specifications
ico-plus ico-minus
Technical Information
HD Recording Yes
Night Vision Yes
Night Vision Distance 49.21 ft
Night Vision Type Infrared
Display & Graphics
Image Sensor Type CMOS
Color Supported Color
Field of View H : 192 ? / V : 192 ? / D : 192 ?
Effective Camera Resolution 6 Megapixel
Video
Video Formats
  • H.265
  • H.264
  • MJPEG
Maximum Video Resolution 2048 x 2048
Maximum Frame Rate 30 fps
Lens
Lens Type Fixed
Maximum Focal Length 1.60 mm
Lens Included Yes
Maximum Aperture f/1.6
Exposure
Shortest Shutter Speed 1/12000 Second
Longest Shutter Speed 2 Second
Network & Communication
Connectivity Technology Wired
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Input Voltage 12 V DC
Power Source Type
  • DC
  • PoE
Physical Characteristics
Mount Type
  • Gooseneck
  • Wall Mount
  • Pendant Mount
  • Parapet Mount
  • Ceiling Mount
  • Pole Mount
  • Corner Mount
  • Flush Mount
Form Factor Fisheye
Durability Vandal Resistant
Height 2.6"
Diameter 5.7"
Weight (Approximate) 1.73 lb
Environmental Conditions
Minimum Operating Temperature -40°F (-40°C)
Maximum Operating Temperature 131°F (55°C)
Maximum Operating Humidity 90%
Miscellaneous
Features
  • Built-in IR LED
  • SD Card Local Storage
  • Highlight Compensation (HLC)
  • Back Light Compensation (BLC)
  • Day/Night
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Ingress Protection Rating IP66
NDAA Compliant Yes
Warranty
Limited Warranty 3 Year
