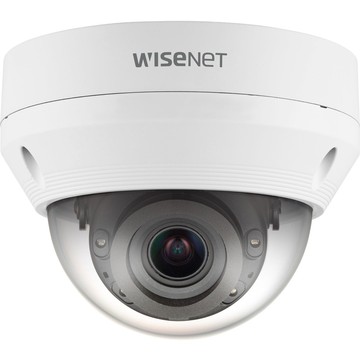

Hanwha Vision QNV-8080R Security Camera

SKU:

QNV-8080R

Security Cameras, Hanwha Techwin America QNV-8080R, Wisenet, 5 Megapixel HD Network Camera, Dome, 98.43 ft Infrared Night Vision, MJPEG, H.264, H.265, 2592 x 1944, 3.20 mm- 10 mm Zoom Lens, 3.1x Optical, CMOS, Ceiling Mount
Description
ico-plus ico-minus
Parts and products from Hanwha Vision.
Technical Specifications
ico-plus ico-minus
Technical Information
Recording Formats HD
HD Recording Yes
Night Vision Yes
Night Vision Distance 98.43 ft
Night Vision Type Infrared
Display & Graphics
Image Sensor Type CMOS
Color Supported Color
Field of View H: 100.3°(Wide)~31.2°(Tele) / V: 72.3°(Wide)~23.5°(Tele) / D: 133.1°(Wide)~38.8°(Tele)
Effective Camera Resolution 5 Megapixel
Video
Video Formats
  • MJPEG
  • H.264
  • H.265
Maximum Video Resolution 2592 x 1944
Maximum Frame Rate 30 fps
Lens
Lens Type Zoom
Minimum Focal Length 3.20 mm
Maximum Focal Length 10 mm
Lens Included Yes
Minimum Aperture f/2.9
Maximum Aperture f/1.6
Optical Zoom 3.1x
Exposure
Shortest Shutter Speed 1/12000 Second
Longest Shutter Speed 1/5 Second
Network & Communication
Connectivity Technology Wired
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Power Source Type PoE
Physical Characteristics
Mount Type Ceiling Mount
Form Factor Dome
Color Family White
Product Color White
Height 4.2"
Diameter 5.4"
Weight (Approximate) 1.54 lb
Environmental Conditions
Minimum Operating Temperature -22°F (-30°C)
Maximum Operating Temperature 131°F (55°C)
Maximum Operating Humidity 90%
Miscellaneous
Features
  • Day/Night
  • Built-in IR LED
  • SD Card Local Storage
  • Back Light Compensation (BLC)
  • Digital Noise Reduction
Impact Protection Rating IK10
Ingress Protection Rating IP66
NDAA Compliant Yes
Warranty
Limited Warranty 3 Year
