Hanwha Vision

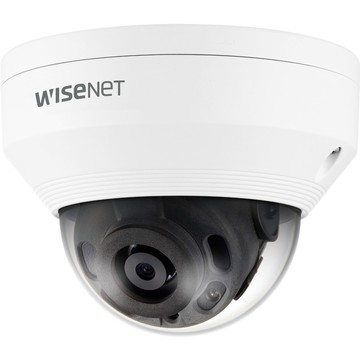

Hanwha Vision QNV-6022R1 Security Camera

SKU:

QNV-6022R1

Security Cameras, Hanwha Techwin America QNV-6022R1, Wisenet, 2 Megapixel Outdoor Full HD Network Camera, Color, Dome, 82.02 ft Infrared Night Vision, H.265, H.264, H.265M, H.264M, H.265H, H.264H, MJPEG, 1920 x 1080, 4 mm Fixed Lens, CMOS, Corner Mount, Pole Mount, Wall Mount, Pendant Mount, Hanging Mount, Backbox Mount, Box Mount, Gooseneck, Roof Mount, Parapet Mount, Ceiling Mount, IK10, IP66, Vandal Resistant
Prices could not be updated.
Description
ico-plus ico-minus
Parts and products from Hanwha Vision.
Technical Specifications
ico-plus ico-minus
Technical Information
Recording Formats Full HD
HD Recording Yes
Night Vision Yes
Night Vision Distance 82.02 ft
Night Vision Type Infrared
Display & Graphics
Image Sensor Type CMOS
Color Supported Color
Field of View H: 87.6 / V: 46.4° / D: 104.5°
Effective Camera Resolution 2 Megapixel
Video
Video Formats
  • H.265
  • H.264
  • H.265M
  • H.264M
  • H.265H
  • H.264H
  • MJPEG
Maximum Video Resolution 1920 x 1080
Maximum Frame Rate 30 fps
Analog Video Signal Format CVBS
Lens
Lens Type Fixed
Maximum Focal Length 4 mm
Lens Included Yes
Maximum Aperture f/1.6
Exposure
Shortest Shutter Speed 1/12000 Second
Longest Shutter Speed 1/5 Second
Network & Communication
Connectivity Technology Wired
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Input Voltage 12 V DC
Physical Characteristics
Mount Type
  • Corner Mount
  • Pole Mount
  • Wall Mount
  • Pendant Mount
  • Hanging Mount
  • Backbox Mount
  • Box Mount
  • Gooseneck
  • Roof Mount
  • Parapet Mount
  • Ceiling Mount
Form Factor Dome
Durability Vandal Resistant
Color Family White
Product Color White
Diameter 4.7"
Weight (Approximate) 1.12 lb
Environmental Conditions
Minimum Operating Temperature -22°F (-30°C)
Maximum Operating Temperature 131°F (55°C)
Maximum Operating Humidity 90%
Miscellaneous
Features
  • Motion Detection
  • Tamper Detection
  • SD Card Local Storage
  • Built-in IR LED
  • Day/Night
  • Back Light Compensation (BLC)
  • Wide Dynamic Range
  • Digital Noise Reduction
  • Privacy Masking
  • Auto Gain Control
  • Automatic White Balance
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Ingress Protection Rating IP66
Warranty
Limited Warranty 3 Year
