Zebra

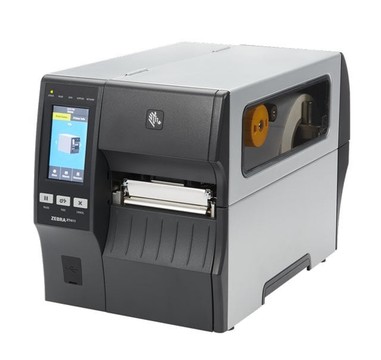

Zebra ZT411 Label Printer RFID UHF Encoder, 203dpi, Peeler, 4.3-inch color touch display, 14 in/s, USB 2.0/Ethernet/Bluetooth 4.1/NFC

SKU:

ZT41142-T1100A0Z

The ZT41142-T1100A0Z pairs thermal transfer printing with a factory-fitted UHF RFID encoder for US and Canada, setting it apart from non-RFID configurations in the ZT411 family and making it a direct fit for smart label production in asset tracking, inventory control, and warehouse workflows. It prints monochrome labels at 203 dpi and up to 14.02 in/s across a 4.09-inch print width, handling die-cut, continuous, notch and black mark stock up to 9.84 mil thick on rolls to 7.99 inches in diameter, with label lengths to 39 inches and maximum print runs to 13.08 ft. A peel-and-present dispenser is included, and transmissive and reflective adjustable media sensors cover the full media range. Connectivity spans USB 2.0, dual USB Host, RS-232 serial, Fast Ethernet, Bluetooth 4.1 and NFC, with optional Wireless LAN; language emulation covers EZPL, ZPL, ZPL II, ZBI 2.0, EPL and EPL II. The 256 MB SDRAM and 512 MB flash memory are paired with a 4.3-inch color touch display on a metal-frame, 36 lb chassis rated for 40°F (4.4°C) to 104°F (40°C) operation, and the unit carries Energy Star qualification.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra ZT411 Series Printer is an industrial 4-inch label printer family designed for demanding enterprise labeling and RFID encoding workflows. Combining thermal transfer and direct thermal printing with selectable resolutions (203, 300 and 600 dpi), the ZT411 platform is built for manufacturing, warehouse & logistics, retail and healthcare environments that require durable, high‑quality labels and on‑demand RFID tags. With a metal frame and bi‑fold media cover, an intuitive 4.3‑inch full‑color touch display, and broad connectivity options, these printers streamline media loading and system integration while delivering reliable throughput and consistent barcode and label readability for high‑volume operations.

Key Features

  • Industrial durability: Metal frame and bi‑fold metal media cover provide robust, long‑life construction for continuous use in harsh environments.
  • RFID-enabled: Built‑in UHF RFID encoders on supported models enable integrated tag programming and improved asset traceability.
  • Flexible print technologies: Supports both thermal transfer and direct thermal methods to handle a wide variety of label materials and applications.
  • High image quality: Multiple resolution options (203, 300, 600 dpi) deliver crisp barcodes, text and graphics to meet different labeling needs.
  • Easy operation: Large 4.3‑inch color touch display and side‑loading media path simplify setup, media changes and daily operator tasks.
  • Broad connectivity: Standard interfaces including USB, dual USB Host, RS‑232 serial, and 10/100 Ethernet with Bluetooth 4.1 and optional 802.11ac Wi‑Fi allow flexible integration.

Specifications

  • Brand: Zebra
  • Product Name: Zebra ZT411 Series Printer
  • Category: Label Printers
  • Print Method / Technology: Direct thermal / Thermal transfer
  • Print Resolutions: 203, 300, 600 dpi
  • Maximum Print Width: 4.09 in (104 mm)
  • Maximum Print Speed: 10 in/s, 14 in/s (model dependent)
  • Display Size: 4.3 in full‑color touch display
  • Connectivity: USB 2.0, USB Host (dual), RS‑232 Serial, 10/100 Ethernet, Bluetooth 4.1, optional 802.11ac Wi‑Fi, NFC (on some models)
  • Memory: 256 MB SDRAM, 512 MB flash
  • Dimensions (closed): 19.5 x 10.6 x 12.75 in (varies by configuration)
  • Weight: 36 lb
  • Media Handling: Side‑loading supplies path; supports roll‑fed or fan‑fold, die‑cut or continuous labels; peel & present on supported models
  • Maximum Media Roll Diameter / Core: Up to ~8 in roll diameter; 3.00 in core supported
  • Construction Material: Metal frame and bi‑fold metal media cover / metal enclosures
  • RFID Support: UHF RFID encoder included on select variants
  • Supported Printer Languages: EZPL, ZPL, ZPL II, ZBI 2.0 (model dependent)
  • Operating Temperature: 41 - 104 °F (selected models)

Main Features

  • RFID: Yes

  • Rugged: Industrial

  • DPI: 203 dpi

  • Connection: RS232, Serial, Ethernet, NFC, USB

  • Optional Upgrades: Peeler, On-Metal

  • Max Width: 4 in

  • Printing Technology: Thermal Transfer

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 14.02 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 13.08 ft
Maximum Print Width 4.09"
Barcode Symbology Supported
  • Code 11
  • Code 39
  • Code 93
  • Code 128 (A/B/C)
  • UCC Case Codes
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN With 2 and 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • POSTNET
  • Plessey
  • Industrial 2 of 5
  • Standard 2 of 5
  • Interleaved 2 of 5
  • MSI
  • LOGMARS
  • Codabar
  • Planet Code
  • Codablock
  • Code 49
  • Data Matrix
  • PDF417
  • AZTEC
  • RSS-14
  • Micro PDF
  • TLC 39
  • QR Code
  • Maxi Code
Peel Facility Yes
Application/Usage
  • Industrial
  • Manufacturing
  • Transportation & Logistic
  • Retail
  • Healthcare
Features UHF Reader
Connectivity Technology Wired
Optional Connectivity Wireless LAN
Print Technology Thermal Transfer
Memory
Standard Memory 256 MB
Interfaces/Ports
Serial Port Yes
USB Host Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Bluetooth Yes
Wireless LAN Yes
Display & Graphics
Display Screen Yes
Screen Size 4.3"
Media Types & Handling
Media Type
  • Label
  • Continuous Label
  • Die-cut Label
  • Notch
  • Black Mark
Media Sensor
  • Adjustable Media Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness 9.84 mil
Maximum Roll Diameter 7.99"
Maximum Label Length 39"
Fonts & Emulation
Language Emulation
  • EZPL
  • ZBI 2.0
  • ZPL
  • ZPL II
  • EPL II
  • EPL
Power Description
Power Source AC Supply
Frequency
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature 40°F (4.4°C) - 104°F (40°C)
Operating Relative Humidity 20% - 85%
Storage Temperature 40°F (4.4°C) - 140°F (60°C)
Storage Relative Humidity 5% - 85%
Physical Characteristics
Height 12.8"
Width 10.6"
Depth 19.5"
Weight (Approximate) 36 lb
Miscellaneous
Power Cable Localization US
Energy Star Yes
Documents
ico-plus ico-minus
Product document zt400-series.pdf ZT41142-T1100A0Z  (PDF)
FAQs
ico-plus ico-minus
What print resolutions are available on the Zebra ZT411 label printer?
The Zebra ZT411 is available in three selectable resolutions: 203 dpi, 300 dpi, and 600 dpi, allowing buyers to match image quality to their specific barcode, text, and graphics requirements.
What connectivity interfaces does the Zebra ZT411 support?
Standard interfaces include USB 2.0, dual USB Host, RS-232 serial, and 10/100 Ethernet, with Bluetooth 4.1 also included; 802.11ac Wi-Fi is available as an optional upgrade.
Does the Zebra ZT411 support RFID encoding?
Yes, a built-in UHF RFID encoder is included on supported variants of the ZT411, enabling integrated tag programming for asset traceability workflows alongside standard label printing.
What optional hardware upgrades can be added to the Zebra ZT411?
Available factory options include a cutter, liner take-up, peeler, rewinder, and on-metal mounting, giving buyers flexibility to configure the printer for their specific media handling and installation needs.
What industries and environments is the Zebra ZT411 designed for?
The ZT411 is built for manufacturing, warehouse and logistics, retail, and healthcare environments, with a metal frame and bi-fold metal media cover engineered for continuous use in demanding conditions.
How much onboard memory does the Zebra ZT411 have, and what printer languages does it support?
The ZT411 is equipped with 256 MB SDRAM and 512 MB flash memory, and supports EZPL, ZPL, and ZPL II printer languages as well as ZBI 2.0 for onboard application execution.
