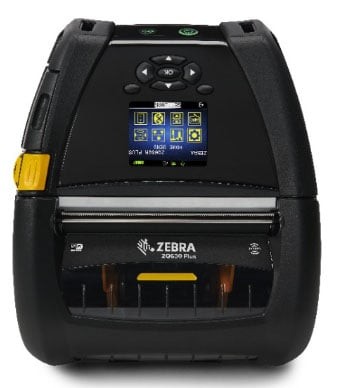

Zebra ZQ630 RFID Plus, Wi-Fi 6, Bluetooth 5, Belt Clip

The Zebra ZQ630 Plus is a rugged mobile RFID label printer engineered for on-the-spot printing and tag encoding across retail, warehousing, field service, transportation and healthcare point-of-care workflows. Combining direct thermal printing with integrated UHF RFID support, fast wireless options and a removable high-capacity battery, the ZQ630 Plus enables teams to produce barcodes, labels and encoded RFID tags where work happens, reducing manual handling and accelerating inventory, shipping and asset-tracking processes. Designed for demanding mobile environments, it pairs 203 dpi print quality and up to 115 mm/s throughput with durable IP54 construction and multiple interface options to simplify integration and maintain productivity across shifts and locations.

Key Features

• Mobile RFID print & encode: Supports UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID for on-demand tag encoding and label creation at the point of need.
• High mobility power: Removable high-capacity battery (6600–6800 mAh depending on variant) with PowerPrecision+ technology to sustain long shifts and enable quick battery swaps.
• Fast, reliable output: Direct thermal printing at 203 dpi and up to 115 mm/s delivers sharp barcodes and labels for time-sensitive workflows.
• Robust wireless connectivity: Flexible options including USB 2.0, Wi‑Fi 6 (802.11ax) or Wi‑Fi 5 (802.11ac) and Bluetooth (BLE, Bluetooth 4.x/5.x/5.3) for seamless mobile integration.
• Rugged design: IP54 ingress protection, high-impact resin casing, tempered glass display and drop resistance up to 1.83 m (6 ft) for dependable field performance.
• Easy integration and sensing: Supports ZPL, EPL and CPCL, includes black mark/gap/label-present sensors and optional RS-232/ethernet via cradle for legacy systems.

Specifications

• Brand: Zebra
• Product Name: Zebra ZQ630 Plus RFID Mobile Printer
• Print Technology / Method: Direct Thermal
• Print Resolution: 203 dpi (8 dots/mm)
• Maximum Print Speed: 115 mm/s
• Maximum Print Width: 104 mm (4.1 in)
• Maximum Media Width: 112 mm
• Media Core Size: 0.75 in (19 mm)
• Maximum Roll Diameter: 66 mm
• Connectivity: USB 2.0; Wireless: Wi‑Fi 6 (802.11ax) or Wi‑Fi 5 (802.11ac), Bluetooth (BLE, Bluetooth 4.x/5.x/5.3)
• Interfaces (additional): mini-USB, optional RS-232; 10/100 Ethernet via cradle
• RAM: 256 MB
• Flash Memory: 512 MB
• Battery Capacity: 6600 mAh; 6800 mAh (variant dependent)
• Battery Energy: 47.5 Wh (where specified)
• Battery Removable: Yes
• Battery Technology: PowerPrecision+ (where specified)
• RFID Compatibility / Protocols: UHF EPC Gen 2 V2; ISO/IEC 18000-63; RAIN RFID
• RFID Encoding Standards: SGTIN-96; DSGTIN+; GS1 TDS 2.0
• RFID Minimum Pitch: 16 mm
• Sensors: Black mark sensor, Gap sensor, Label present / Label taken sensor
• Supported Programming Languages: ZPL, EPL, CPCL
• Display: Color display, 288 x 240 pixels
• Ingress Protection Rating: IP54
• Drop Resistance: 1.83 m (6 ft)
• Weight (including battery): 1.1 kg (2.45 lb)
• Dimensions (L x W x H): 7.35 x 6.5 x 3.25 in
• Platen Type: Linered platen
• Core Size (imperial): 0.75 in
• Included Accessories: Belt clip, shoulder strap, battery (varies by kit)
• Construction Materials: High-impact resin casing; tempered glass screen
