Zebra

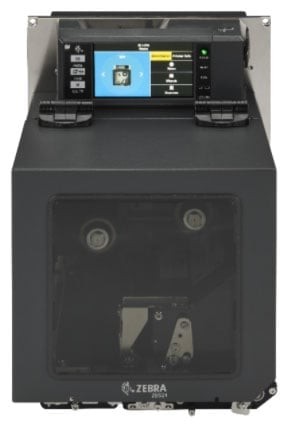

ZE521 6-inch Wide Print Engine

SKU:

ZE52163-L010000Z

The Zebra ZE52163-L010000Z is a barcode printer from the ZE500 series, supporting print widths up to 6.60". Runs Zebra Link-OS for remote fleet management.
Description
ico-plus ico-minus
The Zebra ZE521 Print Engine is designed for mission-critical operations, delivering outstanding print speeds of up to 18 inches per second in a robust, all-metal construction. Engineered for durability, it thrives in harsh environments without the need for cooling fans. The intuitive 4.3-inch color touch screen simplifies setup and management, while advanced features unlock future-ready capabilities, including optional RFID encoding for superior tracking. With Zebra's Print DNA software suite, businesses can seamlessly integrate and manage their printing processes, ensuring reliability and boosting operational efficiency.

Key Features:
  • Fast Print Speeds: Up to 18 ips for swift operations.
  • Durable Construction: All-metal design withstands harsh environments.
  • User-Friendly Interface: 4.3-inch color touchscreen for easy operation.
  • Remote Management: Leverage Print DNA for efficient monitoring and maintenance.
  • RFID Encoding: Optional field-installable for advanced tracking.

Specifications:
  • Print Methods: Thermal transfer and direct thermal printing
  • Resolution Options: 203 dpi, 300 dpi (optional), 600 dpi (optional)
  • Print Width: ZE511: 4.09 in.; ZE521: 6 in.
  • Weight: ZE511: 32.5 lbs; ZE521: 35.5 lbs
  • Connectivity: USB, Serial, Ethernet, Bluetooth 4.1, dual USB Host
  • Operating Temperature: 31°F to 104°F
  • Humidity Range: 20% to 95% non-condensing
  • ENERGY STAR: Certified for energy efficiency

Main Features

  • RFID: Yes

  • Rugged: Industrial

  • Equipment Format: Desktop

  • Connection: USB, Ethernet, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 12 in/s
Maximum Print Resolution (dpi) 300
Maximum Print Length 45"
Maximum Print Width 6.60"
Barcode Symbology Supported
  • Code 11
  • Code 39
  • Code 93
  • Code 128 (A/B/C)
  • UCC Case Codes
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC-A with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • AZTEC
Real Time Clock Yes
Application/Usage Desktop
Features LCD Display
Character Sets
  • Unicode
  • 850
Connectivity Technology Wired & Wireless
Optional Connectivity
  • Parallel
  • Wireless LAN
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 512 MB
Interfaces/Ports
USB Host Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Bluetooth Yes
Display & Graphics
Display Screen Yes
Screen Size 4.3"
Display Screen Type LCD
Touchscreen Yes
Media Types & Handling
Media Type
  • Label
  • Die-cut Label
  • Continuous Label
  • Black Mark
Media Sensor
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness 12.01 mil
Maximum Label Width 45"
Fonts & Emulation
Language Emulation
  • ZPL
  • ZBI 2.0
  • ZPL II
Power Description
Power Source AC Supply
Environmental Conditions
Operating Temperature 31°F (-0.6°C) - 104°F (40°C)
Operating Relative Humidity 20% - 95%
Storage Temperature -40°F (-40°C) - 160°F (71.1°C)
Storage Relative Humidity 5% - 95%
Physical Characteristics
Height 11.8"
Width 9.6"
Depth 17.2"
Weight (Approximate) 35.49 lb
Miscellaneous
Power Cable Localization US
Platform Supported PC
Certifications & Standards Standards approvals: IEC 62368-1; EN 55032, Class A; EN 55035; EN 61000-3-2, 3-3 Product markings, but not limited to: cTUVus; CE; FCC A; ICES-003; VCCI; RCM; CCC; EAC; S-Mark; KCC; BSMI; India-BIS; In-Metro; Energy Star
Energy Star Yes
Documents
ico-plus ico-minus
Product document ze511-ze521.pdf ZE52163-L010000Z Product document ze511-ze521.pdf MOD-ZE521
