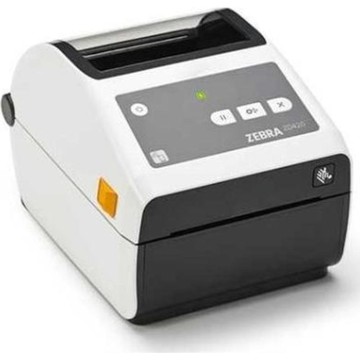

Zebra ZD420 Healthcare, Direct Thermal, 300dpi, Ethernet, Bluetooth, USB, USB Host
ZD42H43-D01E00EZ
Select model
The Zebra ZD420-HC Barcode Label Printer is designed specifically for the healthcare sector, enhancing ease of use and management while ensuring high-quality label printing. Featuring a robust construction ready for frequent disinfection, this printer offers flexible connectivity options and simple media loading. Its exceptional 300 DPI resolution allows for printing crisp and legible labels, making it ideal for medication, patient wristbands, and lab labels. With the added benefit of a cordless battery option, on-the-spot printing is convenient, thereby improving efficiency and patient safety.
Key Features:
- Easy to Use: Intuitive three-button interface with five LED status icons.
- Application Flexibility: Compatible with existing label formats from various brands.
- Multiple Connectivity Options: USB, Ethernet, dual wireless capabilities (Wi-Fi 802.11ac, Bluetooth 4.1).
- Healthcare Compliant: Disinfectant-ready housing and IEC 60601-1 compliant power supply.
- High Capacity Ribbon: Reduces workflow disruptions and costs with dual-ribbon handling.
Specifications:
- Print Methods: Thermal Transfer or Direct Thermal
- Dimensions: ZD420d-HC: 221 mm L x 177 mm W x 151 mm H; ZD420t-HC: 267 mm L x 202 mm W x 192 mm H
- Weight: ZD420d-HC: 1.6 kg; ZD420t-HC: 2.4 kg
- Operating System: Link-OS®
- Resolution: 203 dpi / Optional 300 dpi
- Print Speed: Up to 152 mm/sec (203 dpi); 102 mm/sec (300 dpi)
- Energy Star Qualified: Yes
- Warranty: Two-year standard warranty
Main Features
-
Rugged: Commercial
-
Equipment Format: Desktop
-
Connection: USB, Ethernet, Bluetooth
-
Printing Technology: Direct Thermal
| Technical Information | |
|---|---|
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 4.02 in/s |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Width | 4.25" |
| Application/Usage | Desktop |
| Print Technology | Direct Thermal |
| Memory | |
|---|---|
| Standard Memory | 256 MB |
| Interfaces/Ports | |
|---|---|
| USB | Yes |
| Network & Communication | |
|---|---|
| Ethernet | Yes |
| Bluetooth | Yes |
| Media Types & Handling | |
|---|---|
| Media Type |
|
| Maximum Roll Diameter | 5" |
| Maximum Label Width | 4.65" |
| Maximum Label Length | 39" |
| Power Description | |
|---|---|
| Power Source | AC Supply |
| Physical Characteristics | |
|---|---|
| Height | 5.9" |
| Width | 7" |
| Depth | 8.7" |
| Weight (Approximate) | 3.60 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Cables Included |
|
| Power Adapter Included | Yes |
| Platform Supported |
|
| Energy Star | Yes |
| Country of Origin | China |
