RTL10B1-H1AS0X0000NA
RTL10B1-H1AS0X0000NA
Select model

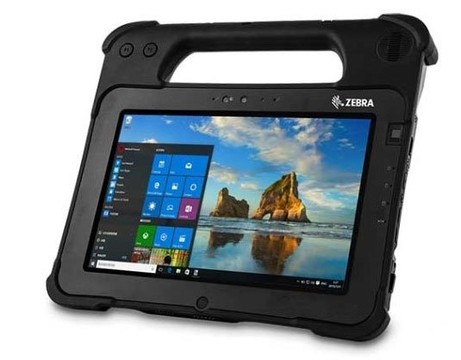

The Zebra L10ax Windows Rugged Tablets are engineered for the toughest work environments, offering unparalleled mobile connectivity and performance. With options for Wi-Fi 6E and 5G/4G support, your team stays connected to essential data and communications, ensuring productivity across industries like construction, public safety, and manufacturing. Powered by Intel's 11th generation processors and customizable with a range of accessories, these tablets deliver performance and reliability in all conditions—from cold storage to extreme heat, making them a versatile solution for every worker's needs.
Key Features:
- Rugged Design: Waterproof, dustproof, and drop-proof with MIL-STD-810H certification.
- Advanced Connectivity: Supports Wi-Fi 6E, optional 5G/4G, and Bluetooth 5.2.
- High Performance: Up to 25 hours of battery life with removable, hot-swappable options.
- Enhanced Data Capture: Integrated barcode scanner and high-quality cameras for versatile functionality.
- Multiple Models: XSlate, XPad, and XBook configurations tailored for different tasks.
Specifications:
- Physical Characteristics:
- Dimensions: XSlate - 11.0" L x 7.7" W x 0.88" D; XPad - 11.0" L x 10.0" W x 0.88" D; XBook - 11.0" L x 8.3" W x 2.36" D
- Weight: XSlate - 2.8 lbs; XPad - 3.1 lbs; XBook - 4.63 lbs
- Display: 10.1 in., 1920 x 1200 resolution with capacitive touch
- Performance:
- Processor: 11th Gen Intel® Core™ i7/i5 vPro™
- Operating System: Windows® 10 Pro, Windows 11 capable
- Battery Life: Standard - up to 9.5 hours; Extended - up to 25 hours
- Connectivity:
- Ports: USB 3.0, USB Type-C, Ethernet, audio output
- NFC and RFID options available
- Environmental:
- Operating Temperature: -4°F to 140°F
- Sealing: IP65 rated
- Drop Resistance: 6 ft. drops to concrete
Main Features
-
Operation System: Android
-
Rugged: Industrial
-
GPS: Yes
-
Connection: Bluetooth
| Processor | |
|---|---|
| Processor Type | Kryo 260 |
| Processor Speed | 2.20 GHz |
| Processor Core | Octa-core (8 Core) |
| Chipset | |
|---|---|
| Chipset Manufacturer | Qualcomm |
| Chipset Model | Snapdragon 660 |
| Memory | |
|---|---|
| Standard Memory | 4 GB |
| Memory Card Supported | microSDXC |
| Storage | |
|---|---|
| Flash Memory Capacity | 64 GB |
| Display & Graphics | |
|---|---|
| Screen Size | 10.1" |
| Display Screen Technology |
|
| Aspect Ratio | 16:10 |
| Screen Mode | WUXGA |
| Screen Resolution | 1920 x 1200 |
| Graphics Controller Model | Adreno 512 |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
|---|---|
| WWAN Supported | Yes |
| Wireless Connectivity Technology | Wi-Fi + Cellular |
| SIM Size Supported | Nano |
| Cellular Phone Capability | Yes |
| Cellular Generation | 4G |
| Cellular Data Connectivity Technology |
|
| GPS | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Bluetooth | Yes |
| Near Field Communication | Yes |
| Interfaces/Ports | |
|---|---|
| USB Type-C | Yes |
| USB Type-C Detail | USB Type-C port (USB 2.0, USB 3.0, Display Port) |
| Built-in Devices | |
|---|---|
| Sensor Type |
|
| Front Camera | Yes |
| Front Camera Resolution | 5 Megapixel |
| Rear Camera | Yes |
| Rear Camera Resolution | 13 Megapixel |
| Focus Modes | Auto-focus |
| Operating System | |
|---|---|
| Operating System Platform | Android |
| Upgradable Operating System | Android 14 |
| Battery Information | |
|---|---|
| Maximum Battery Run Time | 9.80 Hours |
| Physical Characteristics | |
|---|---|
| Rugged | Yes |
| Form Factor | Slate |
| Height | 11" |
| Width | 10" |
| Depth | 0.9" |
| Weight (Approximate) | 3 lb |
| Miscellaneous | |
|---|---|
| Features |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) |
| Environmental Compliance |
|
| Warranty | |
|---|---|
| Limited Warranty | 3 Year |
l10.pdf RTL10B1-H1AS0X0000NA
